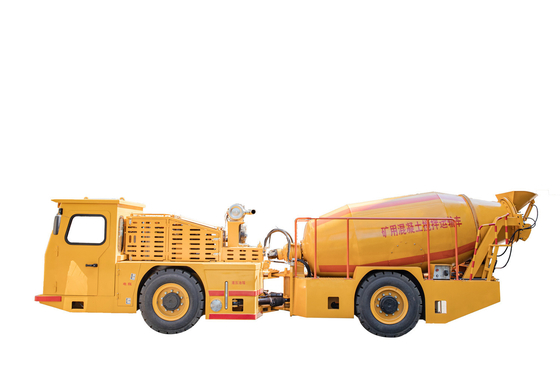

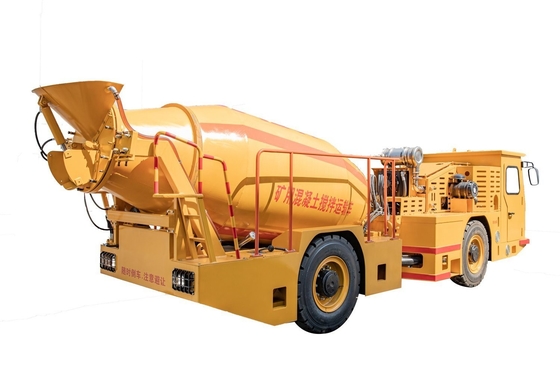

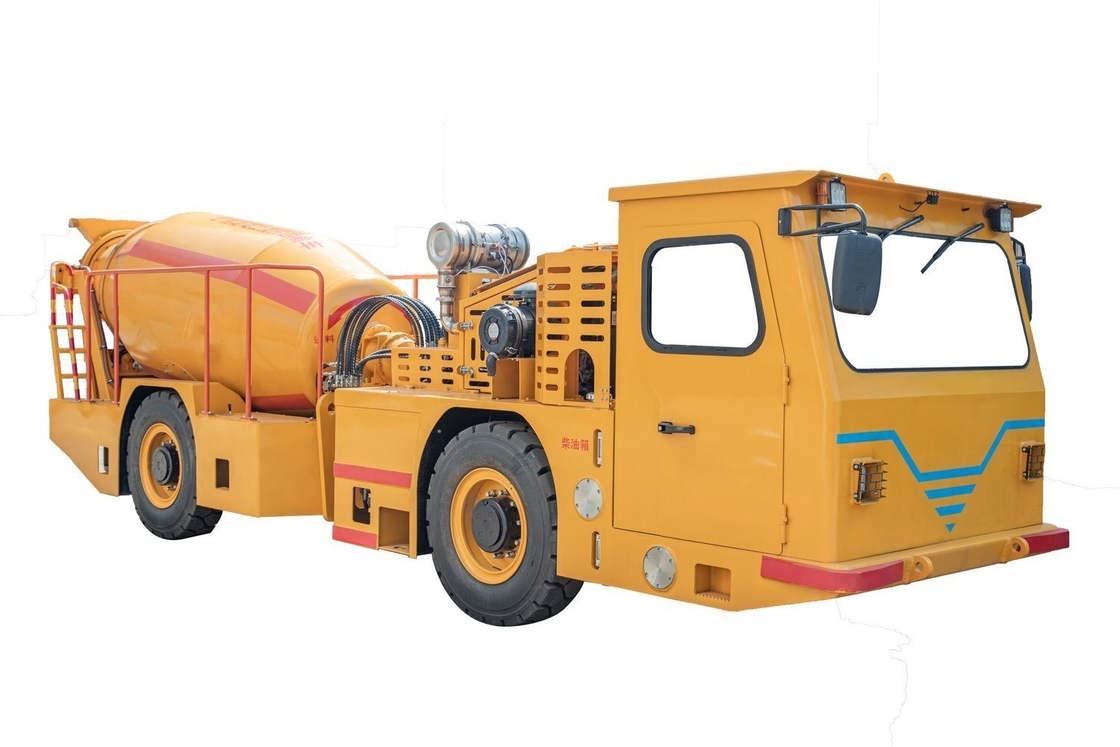

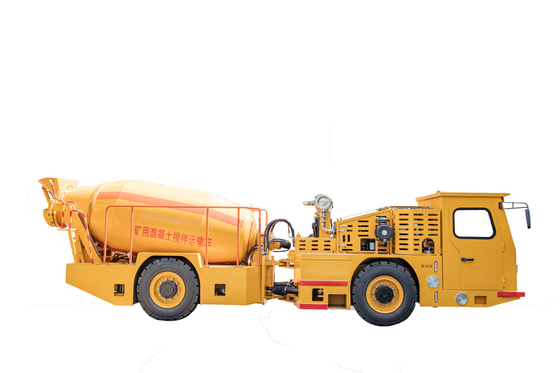

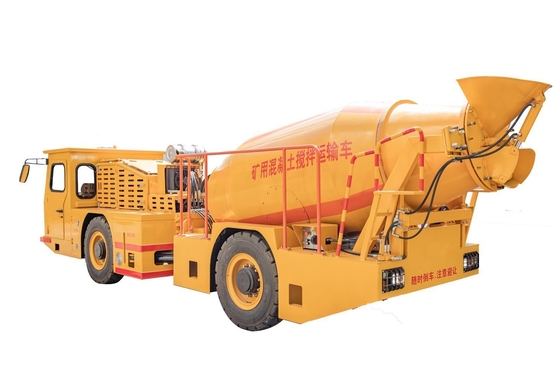

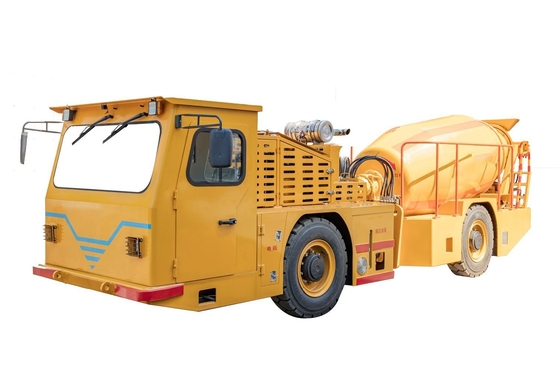

KJCJ-3 Underground Mining Concrete Mixer Equipped With Cummins Engine

MOQ:	1 set
Payment Terms:	LC, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001: 2000

Model NO.:

KJCJ-3

Shotcrete Type:

Wet

Structure:

Rotor Type

Feeding Height:

1400mm

Vibrating Amplitude:

None

Condition:

New

Color:

Orange

Transport Package:

Bulk

Specification:

8450x1900x2360mm

Trademark:

Jarlo

Origin:

China

HS Code:

8705400000

Supply Ability:

1000 Sets/Year

Customization:

Available

After-sales Service:

12 Months

Warranty:

12 Months

Highlight:

KJCJ-3 Mining Concrete Mixer

Cummins Engine Mining Concrete Mixer

KJCJ-3 underground concrete mixing truck

Product Description

KJCJ-3 Mining Concrete Mixing Truck

Overall Size and Structure

Main Technical Parameters

Item			Unit	Parameters
Overall size		L	mm	8485±100
		W	mm	1900±50
		H	mm	2360±50
Total Weight			kg	10000±200
Max. Traction power			kN	≥80
Min. Ground clearance			mm	250
Gradeability			%	25
Steering angle			(º)	±40
Lateral swinging angle			(º)	±6~8
Axle track			mm	1465
Wheel base			mm	3500
Turning radius	Inner		mm	3891
	Outer		mm	6183
Maximum driving speed	Gear I		km/h	5.7±0.57
	Gear II		km/h	9.7±0.97
	Gear III		km/h	18±1.8
Concrete tank capacity			m³	3

Performance characteristics

1.It adopts an articulated body structure; the front frame is the power part, and the concrete tank is installed on the rear frame, with four-wheel drive.

2.The front frame is equipped with a swing frame, which increases the swing angle of the front and rear car bodies in the vertical plane, allowing the vehicle to land on all wheels on muddy and bumpy roads, more effectively improves the wheel adhesion and the passing ability of the entire vehicle.

3.Equipped with Cummins water-cooled engine, which has low noise and long service life.

4.The cab adopts ergonomic design and is equipped with air conditioning, which improves driving comfort-ability.

5.The main components of the hydraulic system use imported brands or well-known domestic brand products, ensuring the reliability of the hydraulic system.

6.The Italian SAFIM dual-circuit braking system is selected. The working brake is a fully enclosed wet multi-disc hydraulic brake, the emergency brake and parking brake are hydraulic release spring brakes, which effectively ensures braking safety.

7. The frame adopts post-weld annealing treatment and shot blasting treatment to eliminate welding stress and ensure the quality of the whole machine.
8. This machine is equipped with cleaning device, water metering device and control system; automatic fire extinguishing system and automatic lubrication system are optional.
