2.6 Cubic Meters Customization Mining Concrete Mixer Truck For Tunnel Construction

Brand Name:	Jarlo
Model Number:	KJCJ-2.6
MOQ:	1 set
Price:	USD 50000-70000
Packaging Details:	Container loaded
Payment Terms:	LC, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001: 2000

Model NO.:

KJCJ-2.6

Shotcrete Type:

Structure:

Rotor Type

Feeding Height:

1400mm

Vibrating Amplitude:

Condition:

Color:

Orange

Transport Package:

Trademark:

Jarlo

Origin:

China

Supply Ability:

1000 Sets/Year

Customization:

Available

After-sales Service:

12 Months

Warranty:

12 Months

Supply Ability:

1000 sets/year

Highlight:

Customization Concrete Mixer Truck

Tunnel Construction Concrete Mixer Truck

2.6 Cubic Meters Concrete Mixer Truck

Product Description

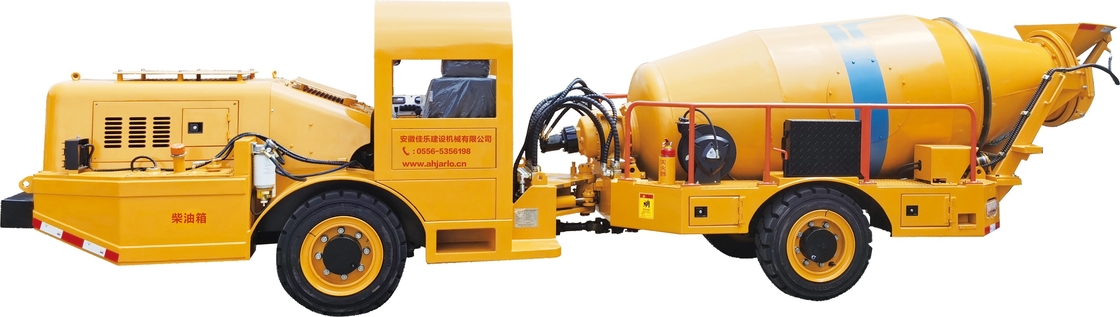

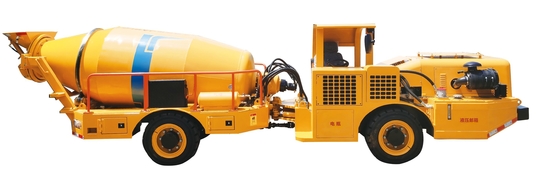

KJCJ-2.6 Mining Concrete Mixing Truck

1. Performance

1. Adopt wet multi-disc brake and dual-circuit brake system to meet the safety requirements of mines.

2. The engine adopts imported brand Cummins turbocharged water-cooled engine, which has low noise, low failure rate, long life and sufficient accessories.

3. Driving brake: double-bridge independent hydraulic power-assisted dual-circuit oil-immersed multi-disc brake.

4. Parking brake: spring brake, hydraulic release safety brake.

5. Gear pump and stirring motor adopt domestic well-known brands.

6. The brake system adopts Italian SAFIM world-renowned brand products.

7. The frame adopts post-welding annealing and shot blasting to eliminate welding stress and ensure the quality of the whole machine.

8. The main electrical components are imported or domestic well-known brand products to improve the reliability of the electrical system.

9. The self-made super performance engineering chassis has power matching, torque adaptive control, strong power and other technologies. The vehicle body is compact and has high maneuverability and operability in the tunnel.

10. The sealed mixing tank is equipped with a gas tank and a water tank for easy cleaning.

11. The horizontal cab with a wide field of view can realize two-way driving in narrow mine tunnels without turning around. The cab is equipped with control panels inside and outside for easy operation.

Overall Size and Structure

Turning Radius

Main Configurations and Parameters

Item	Parameters
Concrete tank capacity	2.8 m³
Churning capacity	2.6 m³
Tank lifting	Standard
Tank discharge height	1190-1380
Steering type	Center articulation, hydraulic cylinder power steering, steering angle +/- 40
Diesel engine	Cummins QSB3.9-C130-30 Water-cooled turbocharged diesel engine, 97Kw/2300rpm
Tires	250-15RG20
Unladen vehicle weight	6.3t
Maximum speed in horizontal tunnel
Gear 1	6.5km/h
Gear 2	11km/h
Gear 3	22km/h
Slope 1: 7 Maximum speed in tunnel
Fully loaded	6.5km/h
Unloaded	11km/h
Dimensions
L	7600mm
W	1720mm
H	2140mm
Wheelbase	3000mm
Track	1460mm
Ground clearance	260mm (Min.)
Outer turning radius	5500mm
Inner turning radius	3200mm
Service brake	Dual-bridge independent hydraulic power-assisted dual-circuit oil-immersed multi-disc brake
Parking brake	Spring brake, hydraulic release safety brake
Cab	Transverse open cab
Lubrication system	Automatic lubrication system for the whole vehicle
Fire extinguishing system	Automatic fire extinguishing system plus handheld fire extinguisher
Onboard computer system	Multi-function on-board LCD display, vehicle speed, engine status and other protection information
