Customization Mining Concrete Mixer Concrete Transmixer Truck For Tunnel Construction

All Category

Underground Shotcrete Machine

Underground Concrete Mixer

Underground Utility Vehicle

Underground Scaler

Underground Mining Drilling Machines

Mining Roof Bolter

Underground Rock Breaker

Contact Us

Mr. Luo

lance@ah-jarlo.com

+86 15215510300

Contact Now

Customization Mining Concrete Mixer Concrete Transmixer Truck For Tunnel Construction

Customization Mining Concrete Mixer Concrete Transmixer Truck For Tunnel Construction

MOQ:	1 set
Payment Terms:	LC, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001: 2000

Model NO.:

KJCJ-2.6(C)

Shotcrete Type:

Wet

Structure:

Rotor Type

Feeding Height:

1400mm

Vibrating Amplitude:

None

Condition:

New

Color:

Orange

Transport Package:

Bulk

Specification:

7650x1720x2120mm

Trademark:

Jarlo

Origin:

China

HS Code:

8705400000

Supply Ability:

1000 Sets/Year

Customization:

Available

After-sales Service:

12 Months

Warranty:

12 Months

Highlight:

Customization Mining Concrete Mixer

,

Tunnel Construction Concrete Transmixer

,

Customization Mining Concrete Mixing Truck

Product Description

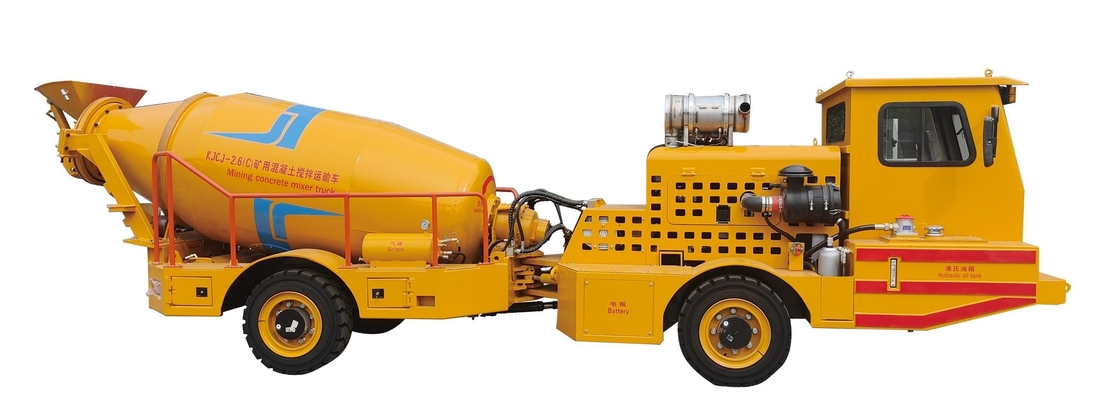

KJCJ-2.6(C) Mining Concrete Mixing Truck

Overall Size and Structure

Turning Radius

Main Configurations and Parameters

Main dimension	L	7650±50 mm
	W	1720±20 mm
	H(Includes cab)	2120±30mm
	Ground clearance	≥220 mm
	Wheel base	3100mm
Machine weight and axle load	Unladen weight	6300±300 kg
	Rated loading weight	6000kg
	Full load weight	12300±300 kg
	Full load weight	12300±300 kg
Driving speed	Slow Gear	6.5±0.6 km/h
Driving speed	Fast Gear	14±1.4 km/h
Gradeability	Climbing ability	≥25%
Main Configuration
Engine	Manufacturer	Cummins
	Structural features	Water cooled diesel engine
	Maximum power	96kW/2500rpm
	Maximum torque	520Nm / 1600rpm
	Air intake system	Dry type air filter
	Exhaust system	ECS Exhaust gas purification catalytic/muffler
	Starting device power/volt	5.5kW / 24V
	Alternator Volts/Amps	24V /110A
	Emissions	National 4
Drive axle	Trans-axle (front, rear)
	Structural features	Rigid trans-axle with standard differential and planetary reduction
	Structural features
Tyre	Tyre	250-15RG20
	Size	740X246
	Inflation pressure	4.9bar
Steering hydraulic system	Structural features	Central articulated, hydraulic power steering
	Steering angle	± 40º
	Turning radius	Outer≤5500mm
	Turning radius	Outer≤5500mm
	System Flow	85L/min
	System pressure	14MPa
	Steering cylinder	2PCS
	Steering cylinder	2PCS
Brake hydraulic system	Service brake/parking brake	Service brake: dual-axle independent hydraulic-assisted dual-circuit oil-immersed multi-disc brake
Brake hydraulic system	Service brake/parking brake	Parking brake: spring brake, hydraulic release, fail-safe parking brake.
Electrical System	Operating Voltage	24V
	Headlight	2×45W
	Rear light	2×45W
	Roof signal warning light	1PCS
	Roof signal warning light	1PCS
Cab	Driving seat	Elastic soft seat cushion, adjustable forward and backward
	Seat	Speed hour meter, oil pressure gauge, brake pressure gauge, brake pressure warning light, oil pressure warning light, engine temperature warning light, Murphy meter.
	Meter	Automatic fire extinguishing system plus handheld fire extinguisher
Optional	Automatic fire extinguishing system	Whole vehicle automatic lubrication system
Optional	Automatic lubrication system	Elastic soft seat cushion, adjustable forward and backward
