Automatic Underground Concrete Mixer Truck For Tunnel With Continuous Drum Mixing Method
  • name
  • name
  • name

Automatic Underground Concrete Mixer Truck For Tunnel With Continuous Drum Mixing Method

MOQ: 1 set
Payment Terms: LC, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001: 2000
Model NO.:
KCJ-4
Object:
Concrete Transportation
Moving Type:
Mobile
Mixing Method:
Continuous Drum
Automatic Grade:
Automatic
Condition:
New
Transport Package:
Bulk
Specification:
7000x2200x2540mm
Trademark:
Jarlo
Origin:
China
HS Code:
8705400000
Supply Ability:
1000 Sets/Year
Customization:
Available
After-sales Service:
12 Months
Warranty:
12 Months
Highlight:

Automatic Underground Concrete Mixer

,

Continuous Underground Concrete Mixer

,

Tunnel Underground Concrete Mixer

Product Description

KJC-4(A) Mining Concrete Mixing Truck

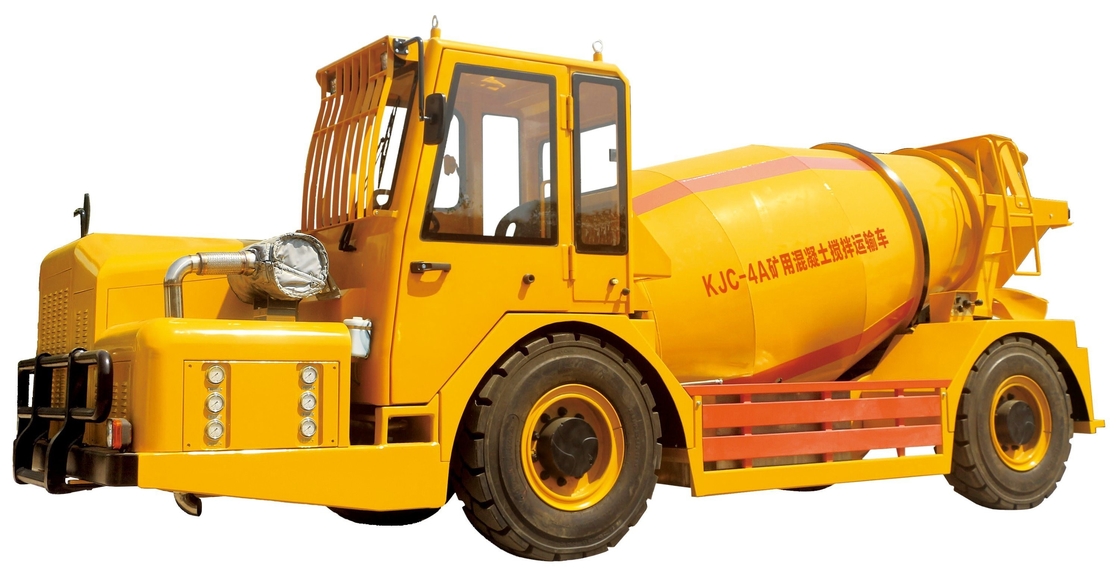

Appearance
Automatic Underground Concrete Mixer Truck For Tunnel With Continuous Drum Mixing Method 0
Overall Size and StructureAutomatic Underground Concrete Mixer Truck For Tunnel With Continuous Drum Mixing Method 1
The vehicle is mainly composed of 8 parts: 1. Tank; 2. Material inlet and outlet system; 3. Frame; 4. Cab; 5. Power system; 6. Reducer; 7. Walking system; 8. Control system

Min. Turning Radius
Automatic Underground Concrete Mixer Truck For Tunnel With Continuous Drum Mixing Method 2Main Configuration and Technical Parameters
Item Unit Parameters
Mixing tank capacity m3 5.4
Stirring capacity m3 4(Rotary sealed type)
Overall machine weight kg 8040
Rated loading weight kg 9600
Largest traction kN 62(Full load 105)
Tank Rotation speed r/min 16
Min. ground clearance mm 320
Min. turning radius (outside) mm 5920
Full load gradeability ° 14
Rear axle swing angle ° 7
Travel speed (heavy load) km/h 1 2 3
6.5 10 20
Reverse Gear
6.5
Diesel engine  kw Deutz
Transportation Size(L×W×H) mm 7000×2200×2540
Water tank volume L 380
Diesel tank volume L 220
Cab   Enclosed cab with heating and cooling air conditioning and 360-degree panoramic imaging system
Axle   American DANA wet brake steering axle
Main oil pump displacement   125ml/r
Braking and parking systems   Hydraulic wet dual brake, service oil brake, parking spring brake hydraulic release, fail-safe parking brake
Cleaning system   Available
Centralized lubrication system   Available
DOC+CDPF   Available
Automatic fire extinguishing device   Available
Note: The bulk density of ready-mixed concrete is calculated as 2400 kg/m3.   Available
