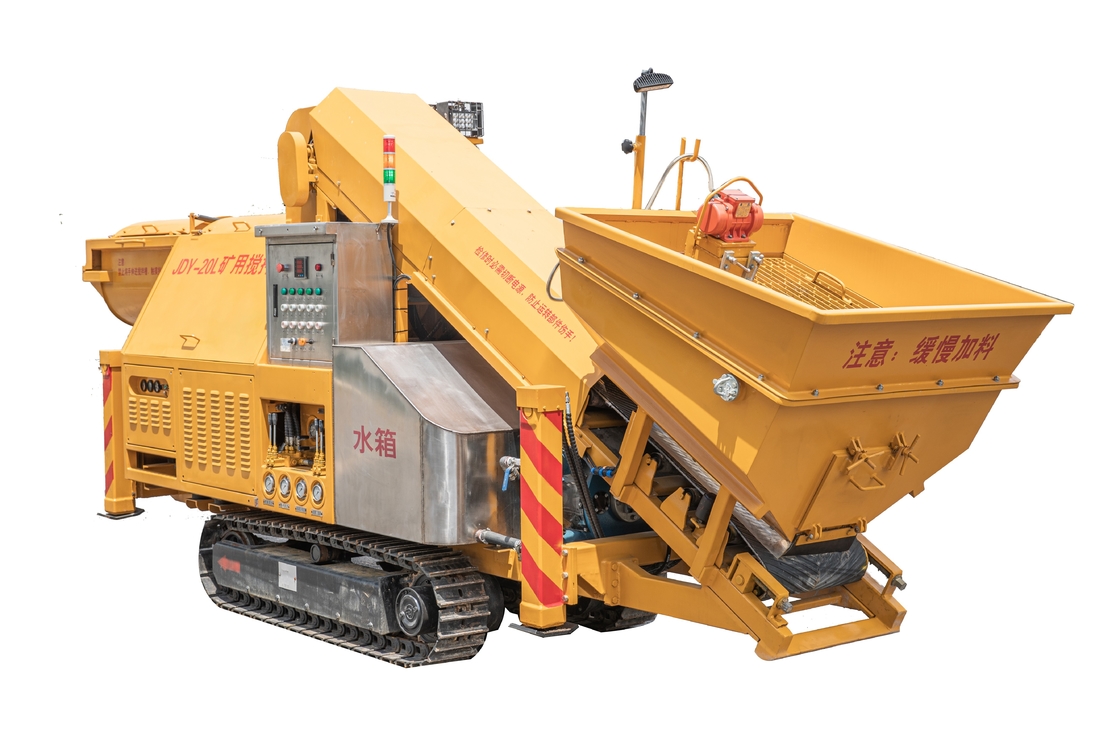

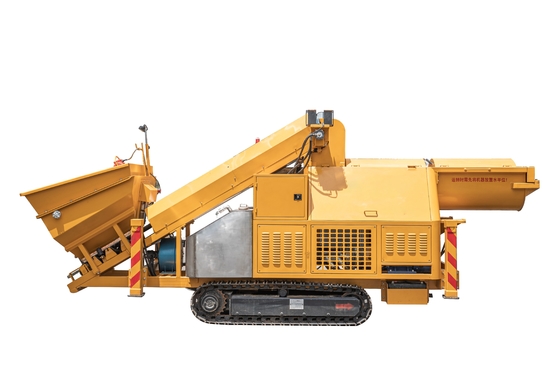

Steel Track Chassis Underground Continuous Concrete Mixer Heavy Duty

Brand Name:	Jarlo
Model Number:	JDY-20L
MOQ:	1
Price:	USD 40000-50000
Packaging Details:	Container loaded

Detail Information

Product Description

Detail Information

Place of Origin:

Anqing China

Certification:

China National Mining Safety Certificate

Power:

Electricity

Size:

5870x1580x2340

Weight:

3750KG

Chassiss:

Steel Track Chassis

Supply Ability:

1000 sets/year

Highlight:

Heavy Duty Underground Concrete Mixer

Underground Continuous Concrete Mixer

Product Description

JDY-20L Mining concrete continuous mixer

1. Performance

1. Equipped with metal tracks, it can carry out mobile mixing according to actual needs, which is suitable for small construction sites or harsh construction environments;

2. It realizes the continuous and sustained mixing, feeding and unloading process, and quickly improves production efficiency;

3. It is matched with Jarlo wet concrete spraying machines, and has been tested under harsh working conditions, proving that it is an excellent high-performance matching product that is efficient, stable, reliable, energy-saving, safe and durable.

2. Dimensions

Steel Track Chassis Underground Continuous Concrete Mixer Heavy Duty 0

3. Main parameters

Item	Parameters
Overall size (mm)	5870x1580x2340
Total weight (Kg)	3780
Capacity (m3/h)	20
Applicable water -cement ratio	0.4～0.5
Feeding height (mm)	1470
Discharging height (mm)	1300
Form of water pump	Hose pump
Water pump control method	Hydraulic step-less speed regulation
Rated working pressure	1MPa
Rated working flow L/min	80
Conveying length (mm)	3000
Conveyor width (mm)	500
Conveyor speed (m/s)	0.7
Hopper capacity (m3)	1
Chassis	Steel track chassis
Diesel engine power (kw)	22.1
Max. Driving speed (km/h)	4
Grade-ability (°)	17
Min. Turning radius (mm)	3000
Track width (mm)	230
DOC+CDPF	Certified
