Articulated Body Structure Underground Concrete Mixer Truck

Brand Name:	Jarlo
Model Number:	KJCJ-4
MOQ:	1 set
Packaging Details:	Container loaded
Payment Terms:	LC, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001: 2000

Model NO.:

KJCJ-4

Condition:

Color:

Orange

Origin:

China

Supply Ability:

1000 Sets/Year

Customization:

Available

After-sales Service:

12 Months

Warranty:

12 Months

Product Description

KJCJ-4 Mining Concrete Mixing Truck

Performance characteristics

1.It adopts an articulated body structure; the front frame is the power part, and the concrete tank is installed on the rear frame, with four-wheel drive.

2.The front frame is equipped with a swing frame, which increases the swing angle of the front and rear car bodies in the vertical plane, allowing the vehicle to land on all wheels on muddy and bumpy roads, more effectively improves the wheel adhesion and the passing ability of the entire vehicle.

3.Equipped with Cummins water-cooled engine, which has low noise and long service life.

4.The cab adopts ergonomic design and is equipped with air conditioning, which improves driving comfort-ability.

5.The main components of the hydraulic system use imported brands or well-known domestic brand products, ensuring the reliability of the hydraulic system.

6.The Italian SAFIM dual-circuit braking system is selected. The working brake is a fully enclosed wet multi-disc hydraulic brake, the emergency brake and parking brake are hydraulic release spring brakes, which effectively ensures braking safety.

7. The frame adopts post-weld annealing treatment and shot blasting treatment to eliminate welding stress and ensure the quality of the whole machine.
8. This machine is equipped with cleaning device, water metering device and control system; automatic fire extinguishing system and automatic lubrication system are optional.

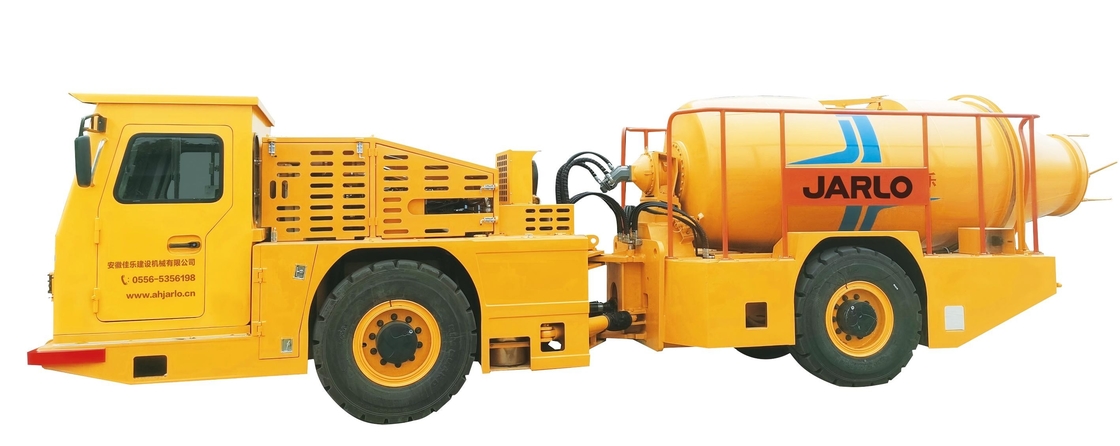

Articulated Body Structure Underground Concrete Mixer Truck 0

Overall Size and Structure

Main Technical Parameters

	Item		Unit	Parameters
	Overall size	L	mm	9216±100
		W	mm	2100±50
		H	mm	2528±50
	Total mass		kg	12500±500
	Maximum traction		kN	≥120
	Minimum ground clearance		mm	320
	Grade climbing ability		%	25
	Steering angle		(º)	±40
	Lateral swing angle		(º)	±7～9
	Track		mm	1660
	Wheelbase		mm	3640
	Turning radius	Inner	mm	3945
	Turning radius	Outer	mm	6470
	Max. Driving speed	Gear I	km/h	5±0.6
		Gear II	km/h	10±1.0
		Gear III	km/h	20±2.0
	Maximum speed in tunnel with slope 1:7	Empty	km/h	11
	Maximum speed in tunnel with slope 1:7	Fully loaded	km/h	9
	Total volume of tank		m³	5.5
	Effective capacity of tank		m³	4
Maximum loading capacity			Kg	10000
Discharge height			mm	1367
Stirring speed			rpm	0⁓16
