Customizable KQTG-150 DTH Drilling Rigs Down The Hole Drilling Machine Underground
  • name
  • name
  • name
  • name
  • name
  • name

Customizable KQTG-150 DTH Drilling Rigs Down The Hole Drilling Machine Underground

MOQ: 1 set
Payment Terms: LC, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Model NO.:
KQTG-150
Transport Package:
Bulk
Specification:
4500x1620x2410mm
Trademark:
Jarlo
Origin:
China
HS Code:
8430490000
Supply Ability:
1000 Sets/Year
Customization:
Available
After-sales Service:
12 Months
Warranty:
12 Months
Highlight:

Underground DTH Drilling Rigs

,

Customizable DTH Drilling Rigs

,

Down The Hole Drilling Machine Underground

Product Description

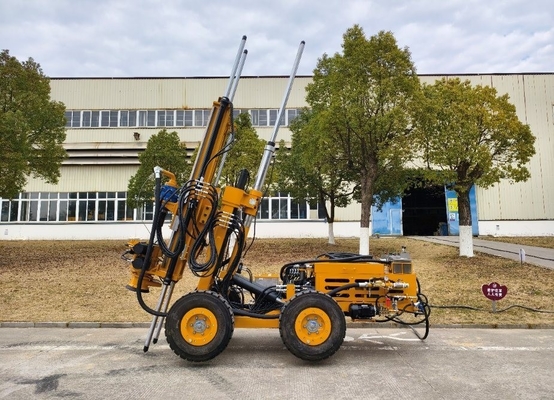

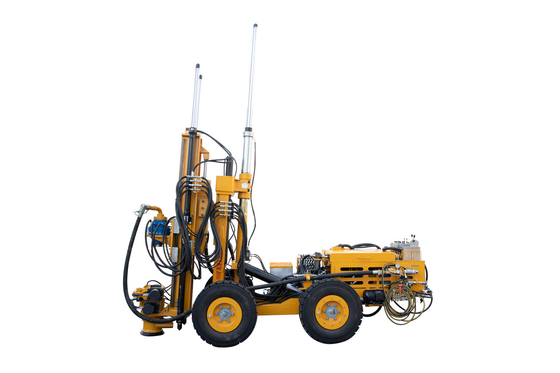

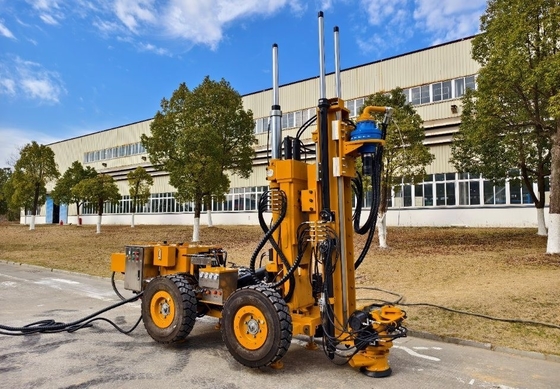

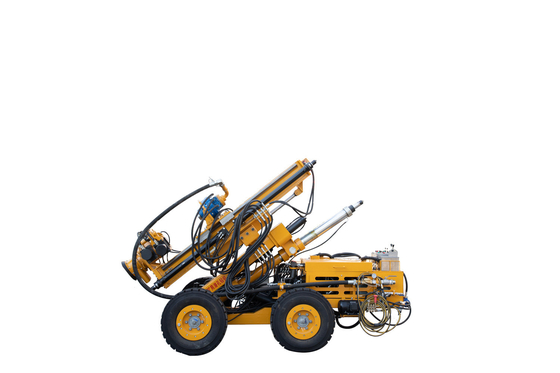

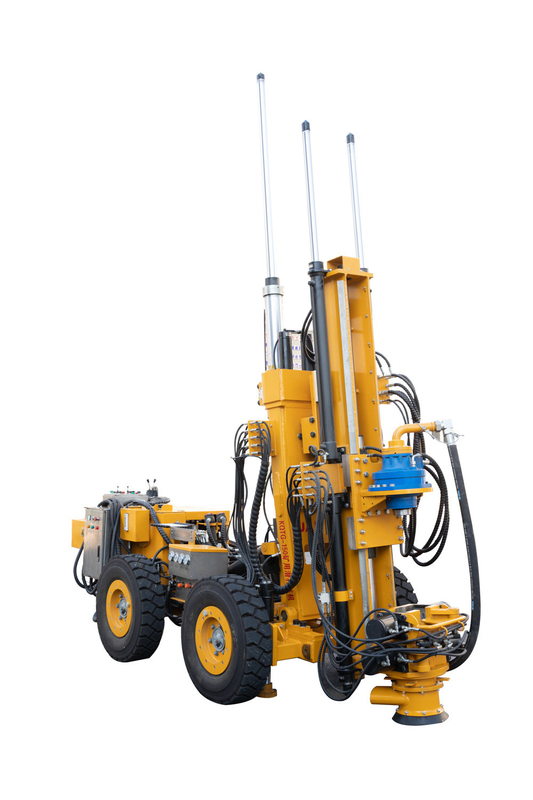

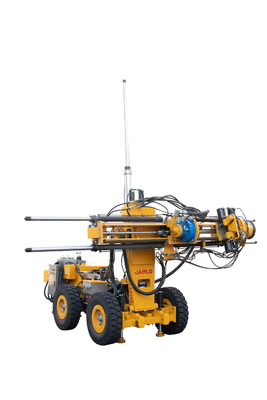

KQTG-150 Down-the-hole drilling rigs

Overall size
Customizable KQTG-150 DTH Drilling Rigs Down The Hole Drilling Machine Underground 0
Main technical parameters
Name Unit KQTG-150
Rated total power kW 25.5
Main electric motor power/Diesel engine power kW 22
Drill hole diameter mm 120~220
Drill hole depth m 0~100
Drill hole skew % ≤1
Rotation performance Rated rotation torque (forward rotation) N.m 2700
Rated rotation speed r/min 35
Rated pressure MPa ≤14
Flow rate L/min ≤66
Supporting mechanism performance Propulsion power kN 0~44
Lifting power kN 0~44
Propulsion speed m/min ≥9
Returning speed m/min ≥9
Advance stroke mm 1820±50
Rail length mm 2500±50
Min. working height mm 3200±100
Max.working height mm 4133±100
Max. advancing speed (unloaded) m/min 17
Max. returning speed (unloaded) m/min 17
Drilling boom rotation angle (°) +180~180
Drilling boom Inclination
forward
backward
(°)
10±2
55±5
backward (°) 55±5
Gradeability ° ≥14(-14°~+14°)
Max. driving speed m/min ≥30
Turning radius m ≤2500
(360° steering on the spot)
Braking type / Wet type spring brake
Overall size Length(Transportation) mm 4500±200
width(Transportation) mm 1620±50
Height(Transportation) mm  2400±100
Min. Ground clearance mm ≥200
Hydraulic system rated pressure MPa 16
Impactor performance Suitable air pressure MPa 0.8~1.6
Rated air pressure MPa 1.6
Rated frequency Hz ≥27
Total mass kg 6000±200

Performance characteristics
Reliability and safety:
  1. The drilling tool rotation directly driven by the low-speed and high-torque hydraulic motor, and the mechanical seal device effectively solves the problem of high-pressure gas and water pollution hydraulic motor; The drilling tool motor has a long life and simple maintenance.
  2. The water and air system adopts the integral connection of the motor and the cleaning machine, which has reliable performance and long service life.
  3. Electronic pulse oil injection system enables the impactor be lubricated effectively and to have a long life span.
Drive mode:
1.The machine is powered by electricity, with low operating cost, low energy consumption and low noise.
2.The wheels are independently driven by the motor, and the drilling rig has strong walking and passing ability, and can be turned 360°in situ, which has superior maneuverability.
Drilling performance:
  1. The cross-section of the guide rail adopts a V-shaped structure, which has good guidance, high drilling accuracy, and the drilling deflection rate is less than 1%.
  2. The high pressure rock drilling speed is fast, and the drilling speed is 0.2 m~0.3 m per minute.
Drilling adaptability:
1.The rack and pinion cylinder is used for the rotation of the drill frame, which has large torque and reliable positioning, makes All-round rock drilling possible.
2.Stable and reliable support mechanism (secondary supporter, main supporter p, outrigger) to ensure the accuracy of drilling.
3.The stope height shall not be less than 3.2 meters, not higher than 3.6 meters, and the width of the roadway shall not be less than 2.6 meters.

Operation performance:
1.The hydraulic rod disassembly system reduces the labor intensity of the operator and saves the auxiliary operation time.
2.Rock drilling operation and drilling positioning operation can be completed on the mobile console, which can realize long-distance and multi-directional operation.
