CYTJ102（A）Face Drilling Machine Underground Single Boom Drilling Rig

Brand Name:	Jarlo
Model Number:	CYTJ102（A）
MOQ:	1 set
Price:	150000-170000 USD
Packaging Details:	Container loaded
Payment Terms:	LC, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

China National Mining Safety Certificate

Model NO.:

CYTJ102（A）

Condition:

Motor:

DC Motor

Drill Hole Diameter:

>300mm

Drill Hole Depth:

3405-4015mm

Bit Type:

Alloy Steel

Drilling Way:

Rotary

Transport Package:

In Bulk

Trademark:

Jarlo

Origin:

China

HS Code:

843041000

Supply Ability:

1000 Set Per Year

Customization:

Available

After-sales Service:

12 Months

Supply Ability:

1000 sets/year

Product Description

Applicable Scenarios

CYTJ102 (A) mining hydraulic single boom face drilling rig is suitable for blasting hole drilling in underground mines, tunnels and underground workshops. The maximum working area is 31m2 (maximum width is 6.11 meters, maximum height is 6.08 meters), and the drilling diameter is 41-102mm. The overall structural design is reasonable, the strength is high, the adjustment and maintenance are simple and convenient, the equipment has high operating efficiency and good economy.

Physical Parameters

Overall Size

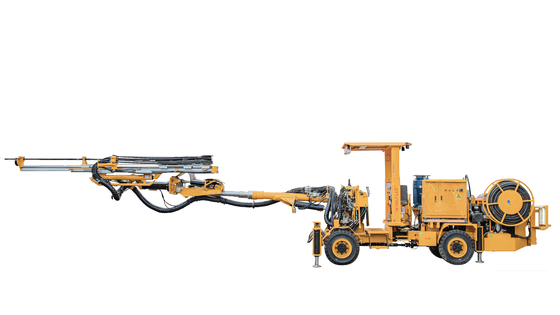

Side View

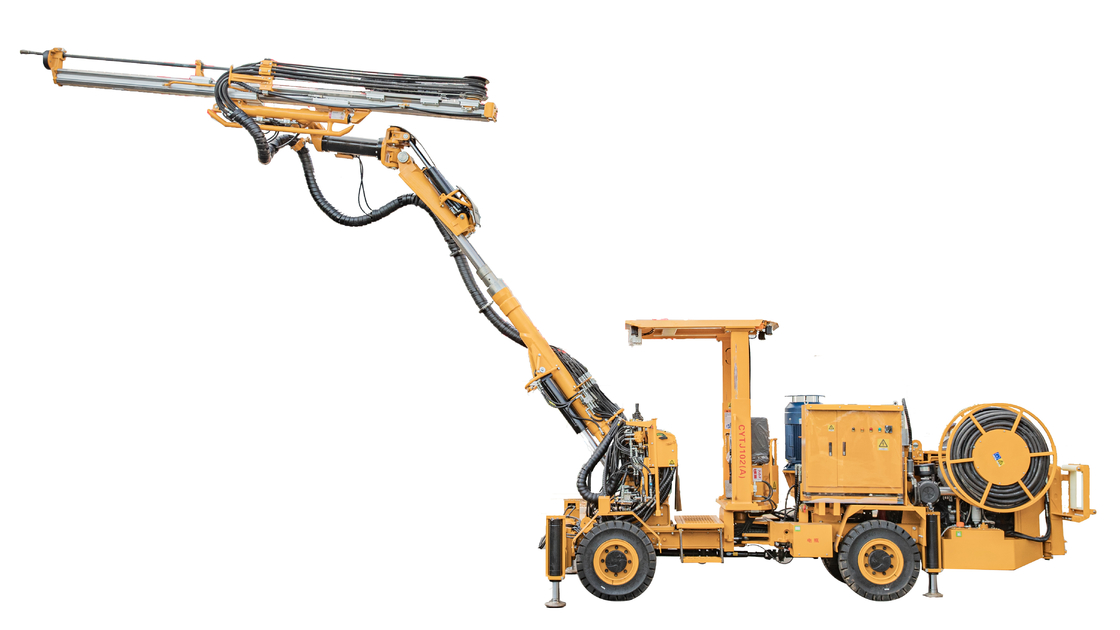

Working Scope
CYTJ102（A）Face Drilling Machine Underground Single Boom Drilling Rig 1

Size

Maximum width	1980mm
Roof height (raise/lower)	2850/2150mm
Length, with JARLO2343 propulsion beam	10800mm
Ground clearance	260mm

Total Weight:11000kg

Driving Speed km/h

On flat road (rolling resistance coefficient 0.05)	>10
On a 1:8 slope	>4.5

Turning Radius

Model					CYTJ102(A)
Item				Unit
Overall performance	Drill boom			Unit	1
	Applicable tunnel section			㎡	2.6×2.6～6×6
	Transport size		L	mm	10500±300
			W	mm	1980±100
			H(With roof)	mm	Highest:2850±100 Lowest:2200±100
	Min. Turning radius			mm	Inner:≤2900 Outer:≤5000
	Working state stable vehicle mode			—	Outrigger
	Min. Ground clearance			mm	≥190
	Working width in stable working state			mm	3294
	Machine weight			kg	11500
	Drilling diameter			mm	φ41-φ102
Drilling system	Type			—	Impact + rotation
	Model			—	YYG-20/900
	Machine weight			kg	195
	Edge distance			mm	84
	Size(L×W× H)			mm	1016×285×226
	Impact device	Impact energy		J	≥350
		Impact frequency		Hz	≥50
		Impact power		kW	20
		Impact rated pressure		MPa	≤19
		Impact flow		L/min	≤90
	Rotating mechanism	Rotation torque		N.m	≥800
		Rotation speed range		r/min	0-280
		Rotation working pressure		MPa	≤6
		Rotation working flow		L/min	≤80
Propeller	Propulsion mode			—	Oil cylinder-wire rope
	Drilling depth				3405/4015
	Maximum propulsion force			kN	≥24
	Propulsion drilling speed			mm/min	≥2150
	No-load propulsion speed			mm/min	≥6000
	Working pressure			MPa	≤11
Driving system	Travel mode			—	Wheeled (articulated)
	Driving speed	Fast gear		km/h	10±1
		Slow gear		km/h	6±0.6
	Rear axle swing angle			(°)	±6~±8
	Climbing ability			(°)	≥14(-14~+14°)
	Brake				Wet hydraulic brake + spring brake
	Diesel engine	Rated power		kW	88
		Rated speed		r/min	2200
Hydraulic oil pump	Electric motor	Rated power		kW	55
		Rated voltage		V	380
		Rated current		A	101
		Starting current		A	≤400
	Oil pump (impact/positioning/rotation)	Rated pressure		MPa	21
		Maximum working pressure		MPa	23
Auxiliary working device	Air supply device	Working pressure		MPa	0.5
		Rated flow		L/min	420
	Water supply device (external water supply)	Working pressure		MPa	1.2
		Rated flow		L/min	70
