Diesel Engine Underground Mining Drilling Machine Bench Crest Drilling Machine

Brand Name:	Jarlo
Model Number:	CYT41Q（A）
MOQ:	1 set
Price:	50000-70000
Packaging Details:	Container loaded
Payment Terms:	LC, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

China National Mining Safety Certificate

Model NO.:

CYT41Q（A）

Origin:

China

HS Code:

8430313000

Supply Ability:

1000 Sets/Year

Customization:

Available

After-sales Service:

12 Months

Supply Ability:

1000 sets/year

Product Description

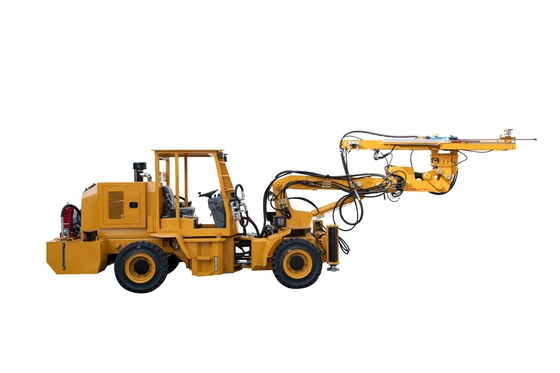

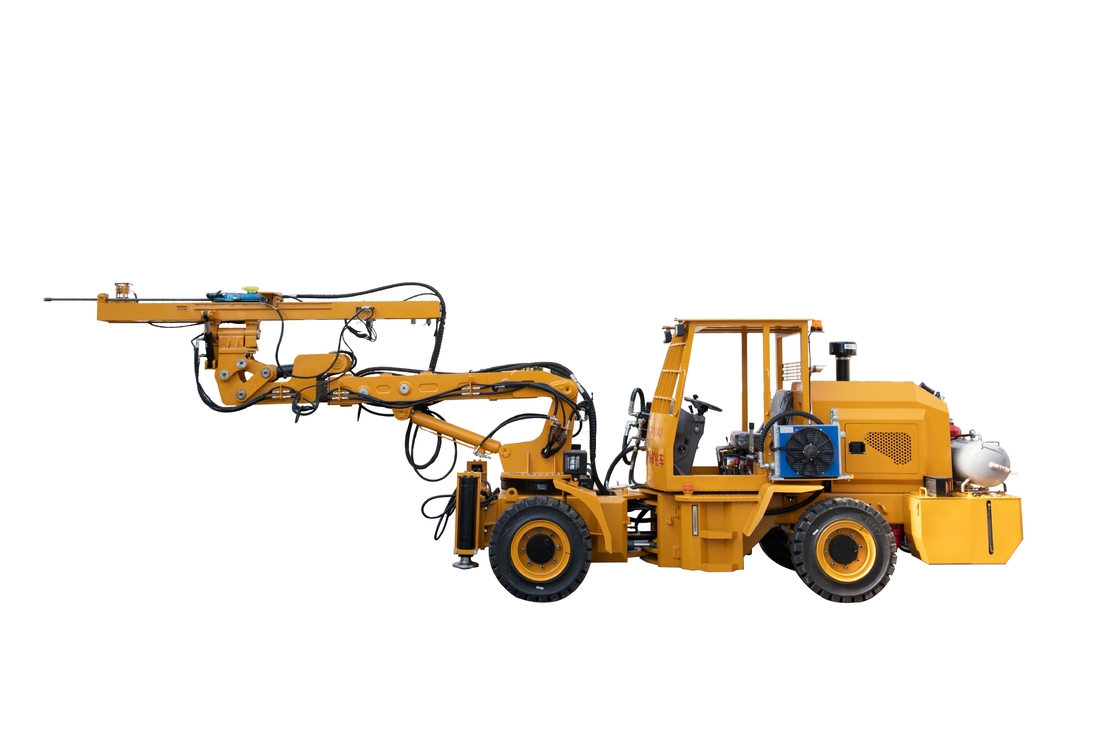

CYT41Q-(A) Mining Drilling and Blasting Rig

1. Applicable Scenarios

CYTC41Q (A) hydraulic mining drill (model and name required by safety standards) is a fully mechanized drilling and blasting machine with functions such as drilling and installing explosives. The rock drill uses a pneumatic rock drill, which is more cost-effective. It is suitable for secondary crushing operations in underground mines such as metal mines, non-metal mines, water conservancy and hydropower, etc. that do not require explosion-proof, such as eyebrow lines, tunnels, and stopes. It can achieve bench crest dredging and crushing of large pieces of ore.

2. Technical features

. Multi-function: drilling, placing explosives, etc.;

. Flexibility: modular design, compact and reasonable layout, articulated steering, flexible walking and turning;

. Powerful power: full diesel power, torque converter four-wheel drive engineering chassis;

. Safety: hydraulic wet dual brake system, driving oil brake, parking closed spring brake;

. Equipped with prefabricated PVC pipe explosive roll magazine, a single entry can complete the installation of 1 roll;

. Internal blasting effect far exceeds the currently commonly used surface blasting effect;

. Accuracy: drill arm support mechanism, rock drill and roll installation push rod rotation switch;

. Remote control system (optional), can realize drilling, charging, switching workstations and other operations through remote control, safe and reliable;

3.Parameters

Model				CYTC41Q(A)
Item			Unit	Parameter
Overall performance	Size	L×W×H	mm	7750±100×1800±50×2530±50
	Min. Turning radius		mm	Inner:1600；Outer:4500
	Min. Ground clearance		mm	≥225
	Machine weight		kg	5400±200
	Rated drilling diameter		mm	41
	Drilling depth		mm	1000
Air leg rock drill	Working air pressure		MPa	0.5--0.63
	Impact energy		J	≥44
	Air consumption		m³/min	3.1--5
Driving system	Rear axle swing angle		(°)	±6.5~±8.5
	Driving speed	Gear Ⅰ～GearⅣ	km/h	9.5±0.9～21±2.1
	Max. Climbability		(°)	14
Drill boom	Telescopic length		mm	513
	Radial swing angle		(°)	±90
	Longitudinal swing angle		(°)	﹢70
Diesel engine	Rated power		kW	81
	Rated speed		r/min	2400
Hydraulic system	Rated working pressure		MPa	17
	Maximum working pressure		MPa	18
Water supply device	Water tank capacity		L	250
Explosive roll push mechanism	Pushing mechanism rotation angle		(°)	35
	Storage capacity		PCS	1
	Diameter of medicine roll		mm	32
	Maximum pushing stroke		mm	1000

4. Size and turning radius

5. Working scope
