Rotary Mining Drill Rig Machine Underground MID-Deep Hole Tunnel Drilling Rig Standard Type

MOQ:	1 set
Payment Terms:	LC, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model NO.:

CYTC89

Condition:

New

Motor:

DC Motor

Drill Hole Diameter:

51-89mm

Drill Hole Depth:

3200mm

Bit Type:

Alloy Steel

Drilling Way:

Rotary

Transport Package:

In Bulk

Specification:

8763x2380x3180mm

Trademark:

Jarlo

Origin:

China

HS Code:

843041000

Supply Ability:

1000 Set Per Year

Customization:

Available

After-sales Service:

12 Months

Warranty:

12 Months

Highlight:

Rotary Mining Drill Rig Machine

Rotary Tunnel Drilling Rig

Standard Type Tunnel Drilling Rig

Product Description

CYTC89 Mining Hydraulic Drilling Rig

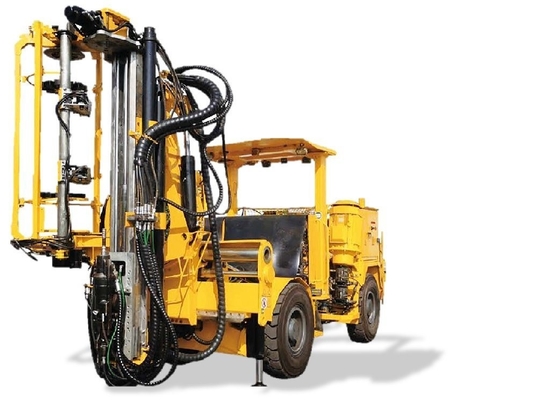

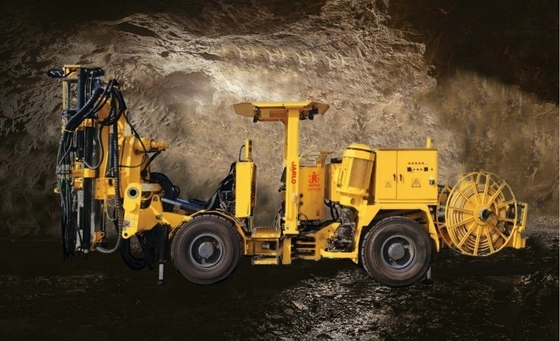

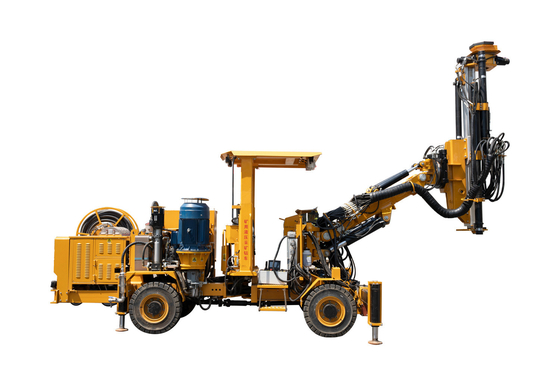

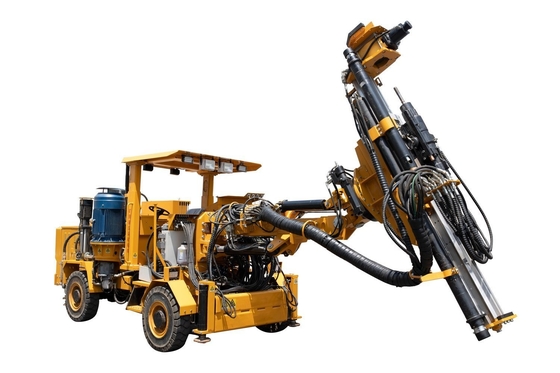

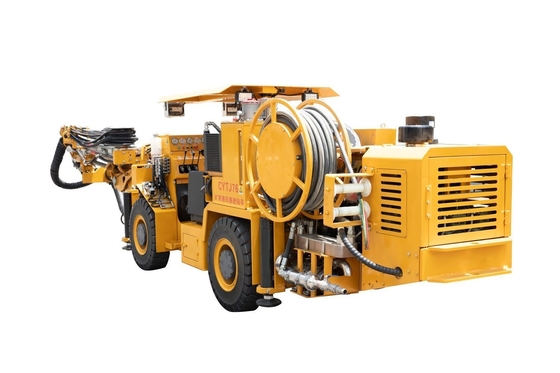

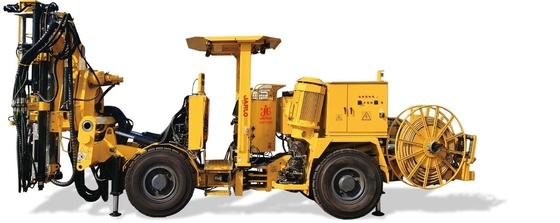

Appearance(Standard Type)

Structure and Dimensions
Rotary Mining Drill Rig Machine Underground MID-Deep Hole Tunnel Drilling Rig Standard Type 1

General Function and Characters

CYTC89 mining hydraulic mining drilling rig is suitable for mining operations in small and medium-sized metal mines. The trolley is equipped with an 1838ME series rock drill (optional), an electro-hydraulic positioning system, an automatic rod changer, an intelligent anti-jamming system and a double shock-absorbing buffer system that significantly improves work efficiency. It can drill large-section tunnels in one stop. The medium-deep parallel holes and fan-shaped holes in the upper and lower directions provide accurate and reliable positioning and high drilling accuracy.

Drilling Unit

Automatic rod changing system
Bipolar hydraulic cylinder propulsion beam
Installed on the front and rear tips of the propelling beam
Buckle used for guiding when opening holes and clamping when connecting and unloading rods

Positioning Unit

Pitch, rotation, swing arm and parallel movement

Accurate and smooth positioning

Propulsion beam extension compensation

Firm structure for mining conditions

Drill Series(Optional)

Double shock absorbing buffer system
Pressure oil film protection and lubricated contact interface extend maintenance intervals
Rod tail adapted to a given aperture

Other configurations

Trolley type operating table
Safety protective roof against rockfall
Cable reel
Tripod mounted work light

Main Technical Parameters and Configurations

Overall Size and Weight
Length	9100mm
Width	2350mm
Height	2950mm
Max. Roof Height	2970mm
Ground Clearance	305mm
Total Weight	15000Kg
Turning Radius(Depends on ground)
Outer Diameter	5650mm
Inner Diameter	3350mm
Cable Specifications and Length
Voltage	1140V(Optional)
Specification	3×25+1×16
Diameter	32.6mm
Length	90m

1838ME Rock Drill(Optional)
Shank adapter	T45
Aperture diameter	76-89 mm
Rod	T45 Speed rod
Impact power	20 KW
Impact frequency	54 HZ
Hydraulic pressure(Max.)	250 bar
Rotation motor	Independent rotating
Rotation speed	0-210/0-140 rpm
Lubrication air consumption(3bar)	5 L/s
Water consumption	50 L/min
Weight	171 Kg

Control System

Electrical control system
Anti-stuck system

Propulsion Beam
MFB100 series	MFB 101	MFB 102	MFB 103
Total length (mm)	2610	2915	3220
Rod length (mm)	1220	1525	1830

Chassis

Four-wheel drive articulated mining chassis, suitable for small and medium-sized tunnels
CUMMINS 97KW engine

Drilling Unit

Automatic rod changer, automatic rod connecting <17+1>
It is advisable to use 1.2, 1.5 and 1.8m drill pipes
It is advisable to use T45 fast drill pipe
The maximum automatic pole connection depth can reach 32m

Positioning System

Advance extension compensation stroke (1.2m drill pipe)<900mm>
Advance extension compensation stroke (1.5 and 1.8m drill pipe) <1200mm>
Rotation angle of the slewing device: 360°

Maximum parallel hole spacing of slide table: 1.5m

The swing arm can swing 45° to the left and right to achieve parallel hole positioning of 1.42m, and then to 2.92m,Parallel positioning of (swing arm + slide table)

Propulsion beam rear tip<1150mm>
Propulsion beam front tip<2000mm>
Propulsion beam tilt angle<forward 20°, backward 65°>

Air System

Rock drill lubrication air supply
Air compressor (screw type) <GCU11>
Exhaust air volume <1m3/min> at speed 4500rpm and pressure 7bar
Wind pressure gauge
Air pressure/air volume adjustable
Air blowing device

Control System

Electrical control system
Basic functions include automatic drilling and anti-jamming functions

Electrical System

Total installed power <69.5KW>
Main motor power <55KW>
Voltage <1140V> (other voltages 380v/600v/1000v can be customized)
Frequency<50HZ>
Startup method <Star-delta start>
Motor thermal overload protection
The main electrical box is equipped with digital voltage, ammeter and impact timing meter
Phase sequence indicator
Leakage indicator
Battery charger
Transformer capacity <4KVA>
Cable reel
Work light mounted on tripod <2×100W, 220V>

Hydraulic system

Hydraulic pump: used for impact
Hydraulic pump: used for rotation, positioning and propulsion
Oil pump unloading start
Maximum pressure of the system <210bar>
Maximum capacity of hydraulic oil tank <235L>
Low oil level alarm and automatic shutdown
An oil temperature gauge is installed on the fuel tank
Manual fuel pump
Return oil filtration<10um>
Hydraulic oil filter clogging alarm
Hydraulic oil and water cooler
Mineral based hydraulic oil

Water System
Electric booster water pump

Maximum flow rate <100L/min> at 10bar boost pressure
Minimum inlet water pressure <2bar>
Water pressure gauge

Chassis

Cummins diesel engine (optional and others)
Power (when the speed is 2300rpm) <97KW>
Torque (when the speed is 1500rpm) <520N·m>
Fixed seat with safety belt
Articulated steering <±41° turning angle>
Four-wheel drive
Safety protective roof against rockfall
Hydraulic power steering system
Hydraulic torque converter<YJ315LG>
Front axle<DR30.22B(Q)>
Rear axle <DR30.22l-(H), ±5.3° swing angle>
Anti-slip self-locking differential on the front axle
Tire<12.00×R20>
Approach and departure angles <14°>
Expandable hydraulic front legs <2>
Dual service brake circuit (closed wet brake)
Emergency and parking brake, hydraulic (passive release)
Fuel tank volume <56L>
Electrical system voltage <24V>
Battery <2×80Ah>
Walking lighting <8×45W>
Stairs leading to the operating platform
Fire extinguisher
Maximum climbing ability <14°>
Walking speed (I gear/II gear) <8.5/18km/h>
Horn and warning light
