4 Cubic Meters Articulated Concrete Mixer Mining Concrete Mixing Truck KJCJ-4D

MOQ:	1 set
Payment Terms:	LC, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001: 2000

Model NO.:

KJCJ-4D

Shotcrete Type:

Wet

Structure:

Rotor Type

Feeding Height:

1400mm

Vibrating Amplitude:

None

Condition:

New

Color:

Orange

Transport Package:

Bulk

Specification:

8560x2000x2500mm

Trademark:

Jarlo

Origin:

China

HS Code:

8705400000

Supply Ability:

1000 Sets/Year

Customization:

Available

After-sales Service:

12 Months

Warranty:

12 Months

Highlight:

4 Cubic Meters articulated concrete mixer

Mining Concrete Mixing Truck KJCJ-4D

4 Cubic Meters mining concrete mixer

Product Description

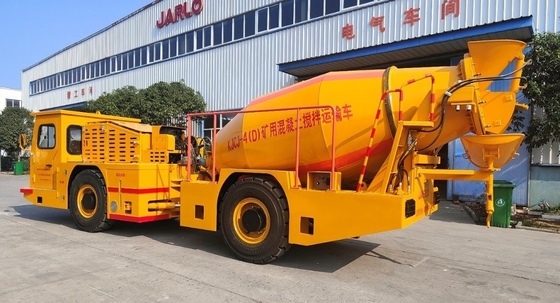

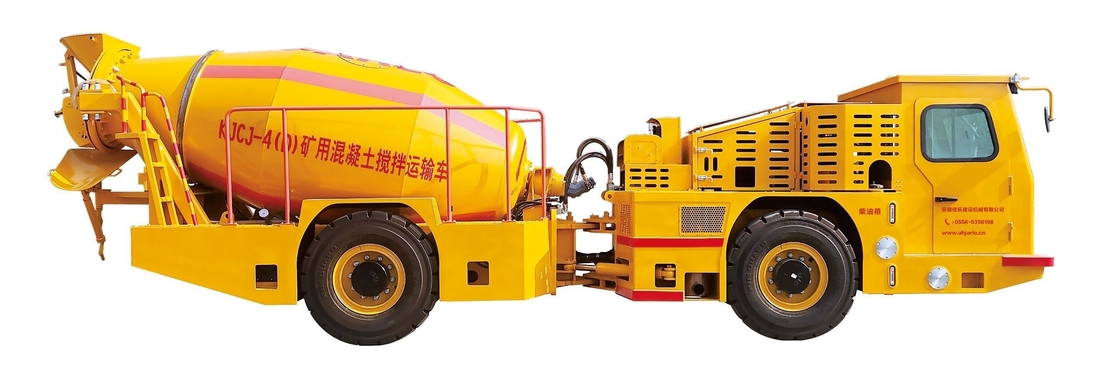

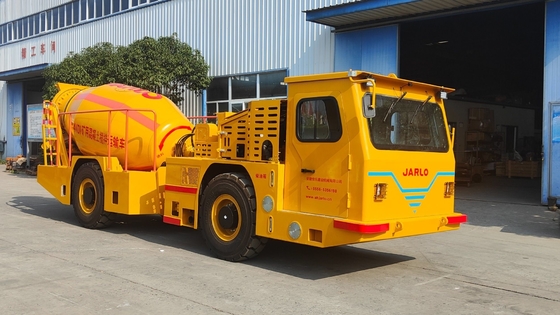

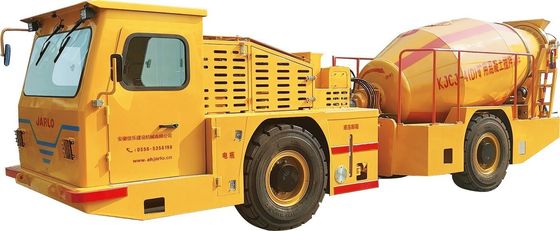

KJCJ-4(D) Mining Concrete Mixing Truck

Overall Size and Structure

Performance characteristics

Specification
Transportation Size(Lx WxH)		8807 x 2100 x 2670mm
Wheel base		3640mm
Axle track		1660mm
Min. Ground clearance		320mm
Unladen vehicle weight		12.5t
Stirring system parameters
Concrete tank capacity		5.5m³
Loading capacity		4m³
Max.discharge height		1529mm
Driving System Parameters
Maximum driving speed in horizontal tunnels	Gear I	3.6km/h
	Gear II	8.2km/h
	Gear III	17km/h
Turning radius(Inner/Outer)		4080/ 6470mm
Steering angle		±40°
Steering Model		Center articulation, hydraulic cylinder power steering
Engine model		Cummins
Engine power		133Kw/2200rpm
Service brake		Double-axle independent hydraulic-assisted dual-circuit oil-immersed multi-disc brake
Parking brake		Spring brake, hydraulically released safety brake
Optional
Automatic lubrication system, automatic fire extinguishing system or hand-held fire extinguisher

Main technical parameters and configurations

1.It adopts wet multi-disc brakes and Italian SAFIM dual-circuit braking system to meet the safety requirements of mines.

2.The closed cab adopts ergonomic design, meets FOPS/ROPS (anti-smash/anti-rollover) standards, and is equipped with heating and cooling air conditioning and a reversing camera system, which improves driving comfort-ability.

3.The sealed mixing tank is equipped with a water tank and an air tank for easy cleaning.

4.The frame adopts post-weld annealing and shot blasting to eliminate welding stress and ensure the quality of the complete machine.
5.Use Cummins engine, which can provide excellent climbing ability and power performance.
