UPT-140/2000 High Performance Underground Rock Breaker Mining

Brand Name:	Jarlo
Model Number:	UPT-140/2000
MOQ:	1 set
Price:	USD 90000-110000
Packaging Details:	Container loaded
Payment Terms:	LC, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

China National Mining Safety Certificate

Model NO.:

UPT-140/2000

Warranty:

12 Months

After-sales Service:

12 Months

Transport Package:

Specification:

10100x2070x2300

Trademark:

Jarlo

Origin:

China

HS Code:

8474209000

Supply Ability:

1000 Sets/Year

Customization:

Available

Motor Type:

AC Motor

Engine Type:

Diesel

Supply Ability:

1000 sets/year

Highlight:

Mining Underground Rock Breaker

Underground Rock Breaker Heavy Duty

High Performance Underground Rock Breaker

Product Description

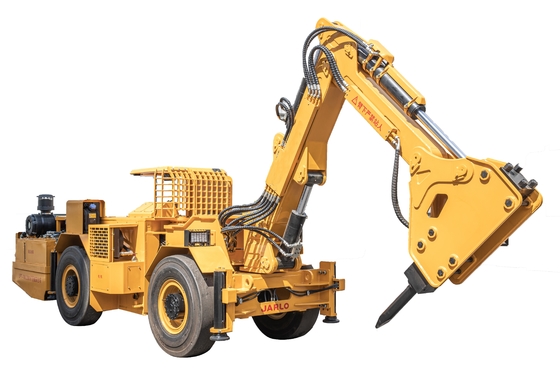

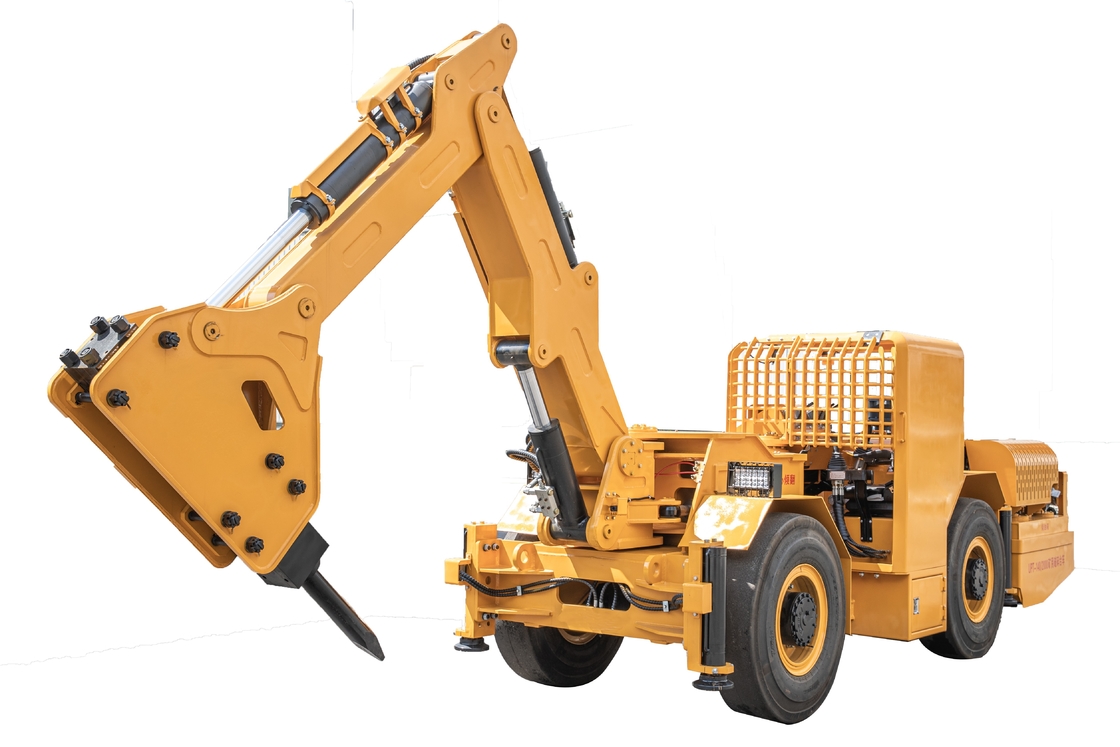

UPT-140/2000 Mining Rock Breaker

Performance
1. Hydraulic torque converter and gearbox drive engineering chassis, four-wheel drive, large driving torque, strong climbing performance.

2. The cab meets the ergonomic design of mine safety, centralized control, reasonable layout, comfort and convenience.

3. Hydraulic wet dual braking system, driving oil brake, parking closed spring brake, to meet the needs of safe use of long ramps and low roadways in mines.

4. The fully hydraulic telescopic and slewing robotic arm has strong bearing capacity, stable action, flexible operation, and no construction blind spots.

5. Articulated special chassis, the turning radius is smaller, and the needs of the shaft and roadway operation are met to the greatest extent.

6. Crushing hammer adopts the industry's leading Korean imported brand products, with stable performance, flexible reversing, high impact power, small recoil force and long service life.

7. Reinforced engineering chassis design greatly enhances the rigidity and strength of the vehicle body, the weight of the whole vehicle is larger, and the crushing stability is better.

Demensions

Turning radius
UPT-140/2000 High Performance Underground Rock Breaker Mining 1

Main configuration and technical parameters

Unit Parameters
Over all size	L 10000mm W 1800mm H 2250mm
Turning radius (Inner)	2530mm
Turning radius (Outer)	5000mm
Gradeability	20°
Min. approaching angle	13°
Min. ground clearance	250mm
Weight
Net weight	13000kg
Loaded weight	13500kg
Breaker Work Performance
Producer	Original Imported South Korean GB
Weight	700 kg
Rod diameter	100mm
Impact power	2000J
Boom swaying angle	±30°
Max. Breaking distance (Vertical down)	3800mm
Driving Speed
Driving speed (high)	11km/h
Driving speed (low)	5.5km/h
Engine
Engine Manufacturer	Yuchai

Engine Power	140kw/2200rpm
Max. Torque	720N.m/1500rpm
Exhaust Standard	National 4

Driving System
Drive mode	Close static hydraulic drive
Tyre	10.00-20
Driving brake	Hydraulic brake, spring release
Parking brake	Spring brake,Hydraulic release,false safety model
Hydraulic System
Steering	Central articulated, dual hydraulic cylinder drive
Steering angle	±40°
Brake pressure	5MPa
Work pressure	20MPa
Breaker work pressure	17MPa
Electrical System
Work Voltage	24V
Generator	28V/70A
Starter	6kw/24V
Battery	Two 12V/105Ah
Lamp	2 at front 108w,4 at the back 21w
