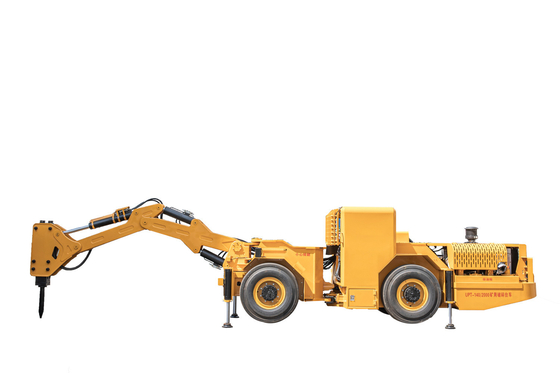

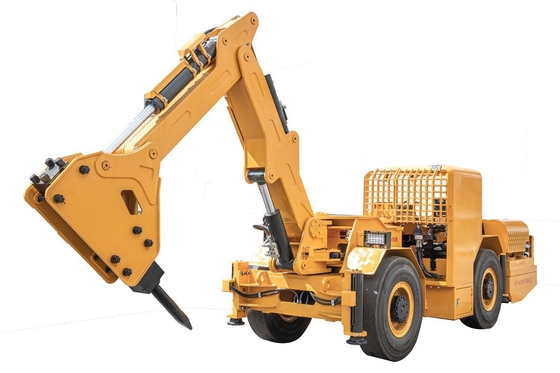

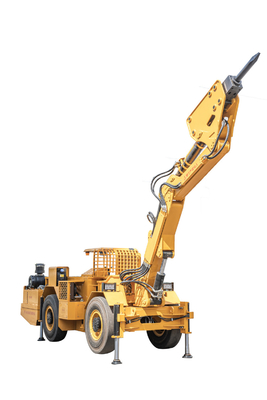

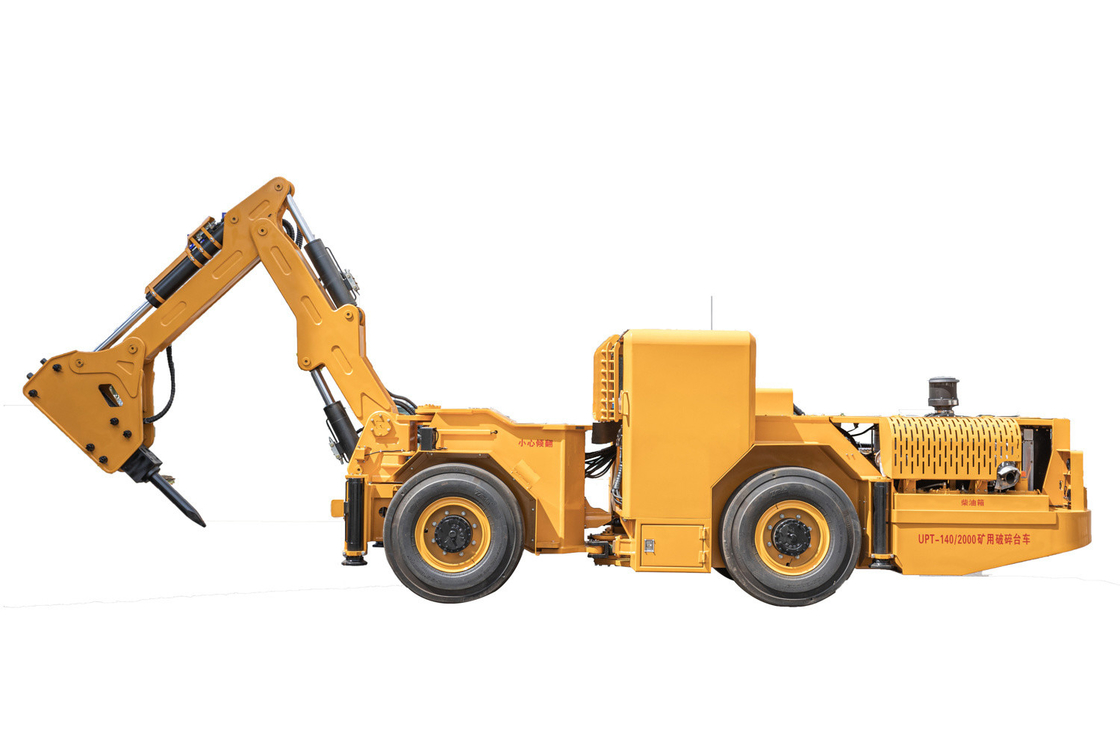

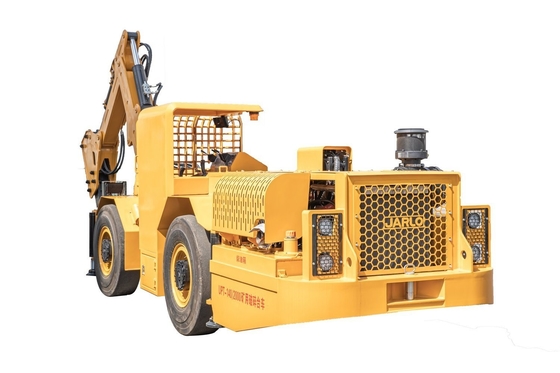

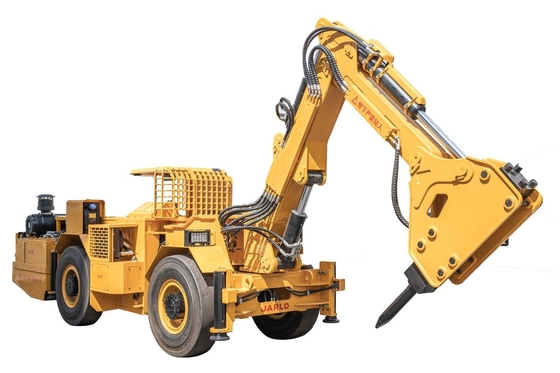

High Performance Underground Mobile Rock Breaker Mining 13500kg UPT-140/2000

MOQ:	1 set
Payment Terms:	LC, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model NO.:

UPT-140/2000

Condition:

New

Warranty:

12 Months

After-sales Service:

12 Months

Transport Package:

Bulk

Specification:

10100x2070x2300

Trademark:

Jarlo

Origin:

China

HS Code:

8474209000

Supply Ability:

1000 Sets/Year

Customization:

Available

Motor Type:

AC Motor

Engine Type:

Diesel

Highlight:

High Performance Mobile Rock Breaker

Rock Breaker Mining 13500kg

13500kg Mobile Rock Breaker

Product Description

UPT-140/2000 Mining Rock Breaker

Demensions
High Performance Underground Mobile Rock Breaker Mining 13500kg UPT-140/2000 1

Turning radius
High Performance Underground Mobile Rock Breaker Mining 13500kg UPT-140/2000 2

Main configuration and technical parameters

Unit Parameters
Over all size	L 10000mm W 1800mm H 2250mm
Turning radius (Inner)	2530mm
Turning radius (Outer)	5000mm
Gradeability	20°
Min. approaching angle	13°
Min. ground clearance	250mm
Weight
Net weight	13000kg
Loaded weight	13500kg
Breaker Work Performance
Producer	Original Imported South Korean GB
Weight	700 kg
Rod diameter	100mm
Impact power	2000J
Boom swaying angle	±30°
Max. Breaking distance (Vertical down)	3800mm
Driving Speed
Driving speed (high)	11km/h
Driving speed (low)	5.5km/h
Engine
Engine Manufacturer	Yuchai

Engine Power	140kw/2200rpm
Max. Torque	720N.m/1500rpm
Exhaust Standard	National 4

Driving System
Drive mode	Close static hydraulic drive
Tyre	10.00-20
Driving brake	Hydraulic brake, spring release
Parking brake	Spring brake,Hydraulic release,false safety model
Hydraulic System
Steering	Central articulated, dual hydraulic cylinder drive
Steering angle	±40°
Brake pressure	5MPa
Work pressure	20MPa
Breaker work pressure	17MPa
Electrical System
Work Voltage	24V
Generator	28V/70A
Starter	6kw/24V
Battery	Two 12V/105Ah
Lamp	2 at front 108w,4 at the back 21w
