Good price online

products details

Home > Products >
Underground Rock Breaker
>

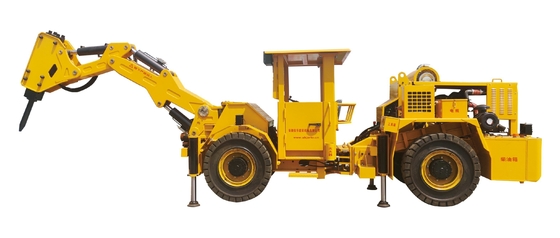

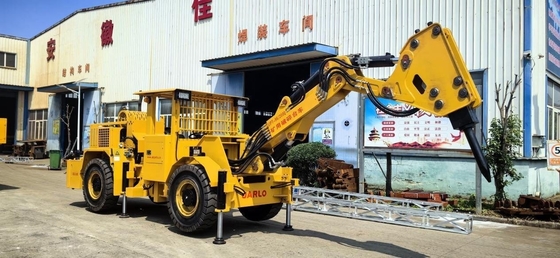

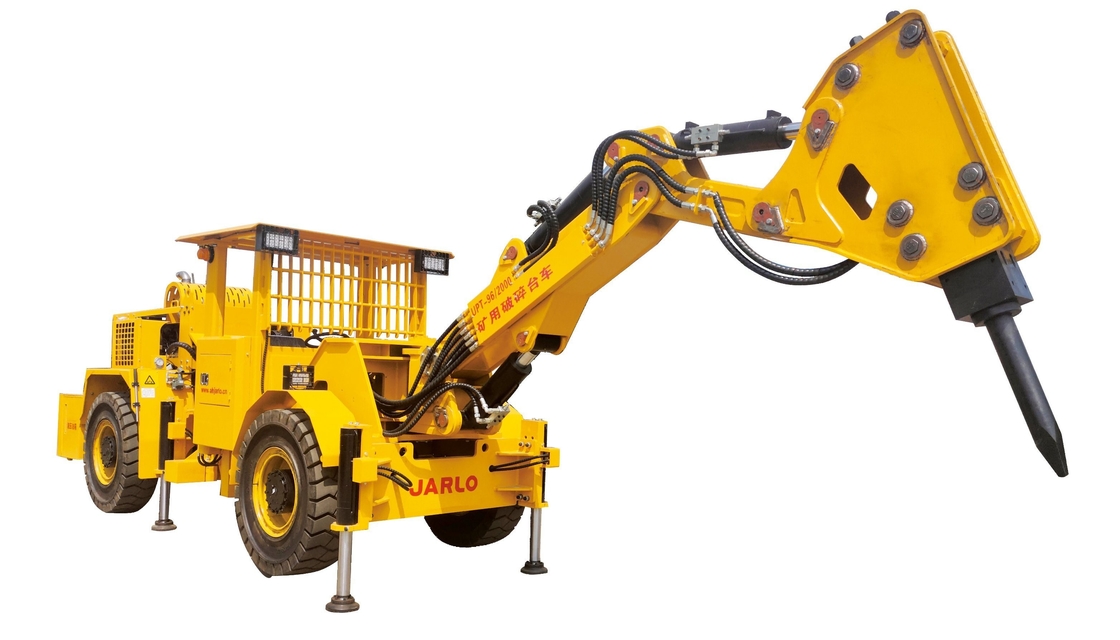

Diesel Engine Underground Rock Breaker With AC Motor Power UPT-96/2200
All Category

Underground Shotcrete Machine

Underground Concrete Mixer

Underground Utility Vehicle

Underground Scaler

Underground Mining Drilling Machines

Mining Roof Bolter

Underground Rock Breaker
Contact Us
Mr. Luo
lance@ah-jarlo.com
+86 15215510300
Contact Now
Diesel Engine Underground Rock Breaker With AC Motor Power UPT-96/2200
  • name
  • name
  • name
  • name

Diesel Engine Underground Rock Breaker With AC Motor Power UPT-96/2200

MOQ: 1 set
Payment Terms: LC, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Model NO.:
UPT-96/2200
Condition:
New
Warranty:
12 Months
After-sales Service:
12 Months
Transport Package:
Bulk
Specification:
7400x1850x2100
Trademark:
Jarlo
Origin:
China
HS Code:
8474209000
Supply Ability:
1000 Sets/Year
Customization:
Available
Motor Type:
AC Motor
Engine Type:
Diesel
Highlight:

Diesel Engine Underground Rock Breaker

,

AC Motor Underground Rock Breaker

,

Diesel Engine mining rock breaker

Product Description
UPT-96/2200 Mining Rock Breaker
Demensions
Diesel Engine Underground Rock Breaker With AC Motor Power UPT-96/2200 0
Working scope
Diesel Engine Underground Rock Breaker With AC Motor Power UPT-96/2200 1
Main configuration and technical parameters

Model UPT-96/2200
Item Unit Parameters
Equipment Features Dimension Length mm 7400
Width mm 1850
Min. Height mm 2100
Max. Height mm 2380
Min. Turning radius mm Inner:≤3400
Outer:≤5350
Min. Ground clearance mm 300
Max. Breaking width mm 4500
Max. Breaking height mm 4100
Total mass kg 11800
Articulated angle (°) ±40
Working boom Working pressure MPa 18
Working boom swing angle(left/right) ° ±30
Hydraulic breaking hummer Breaking hummer manufacturer Original Imported Korean Sapper
Impacting power J ≥2200
Impacting frequency Hz 6-13
Rod diameter mm 100
Weight kg 700
Working flow L/min 85-110
Working pressure MPa 15-17
Chassis Driving type - Tyre (Articulate)
Steering pressure MPa 16
Driving speed Gear 1 km/h 20
Gear 2 km/h 9
Gradeability (°) 25
Diesel engine Brand/model - Cummins
Rated power kW 96
Rated rotation speed r/min 2500
Main configuration Service brake Hydraulically mobilized, dual-circuit, oil-immersed multi-disc brakes
Parking brake Spring-loaded brakes, hydraulically released, fail-safe brakes
Driving Cab Lift-able; Front with protective Fence
