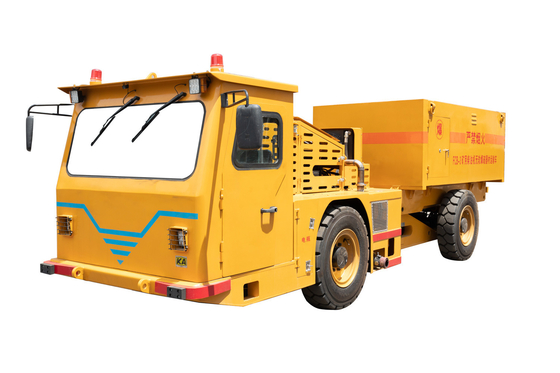

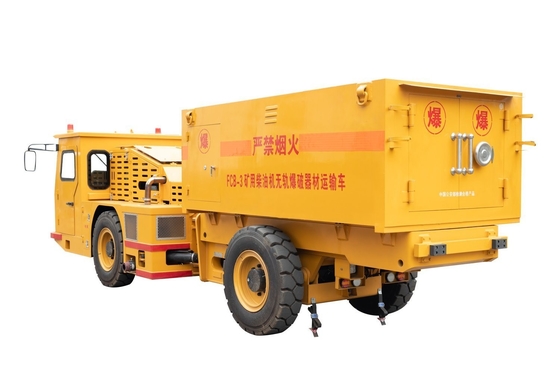

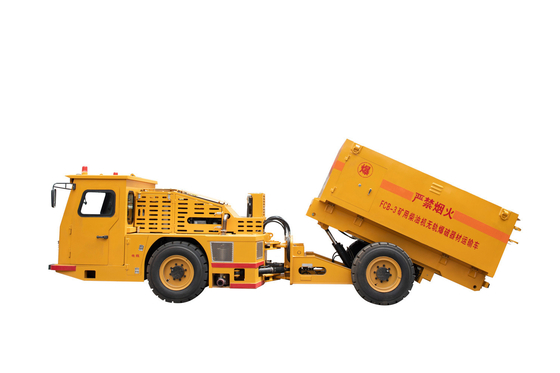

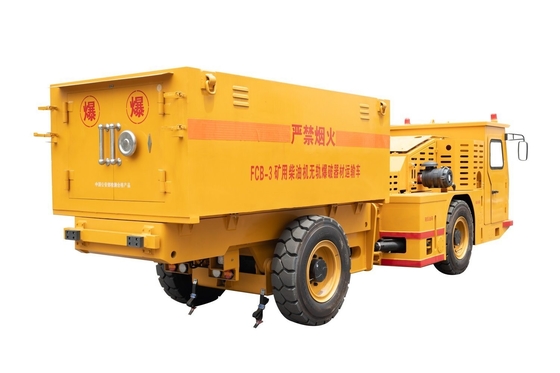

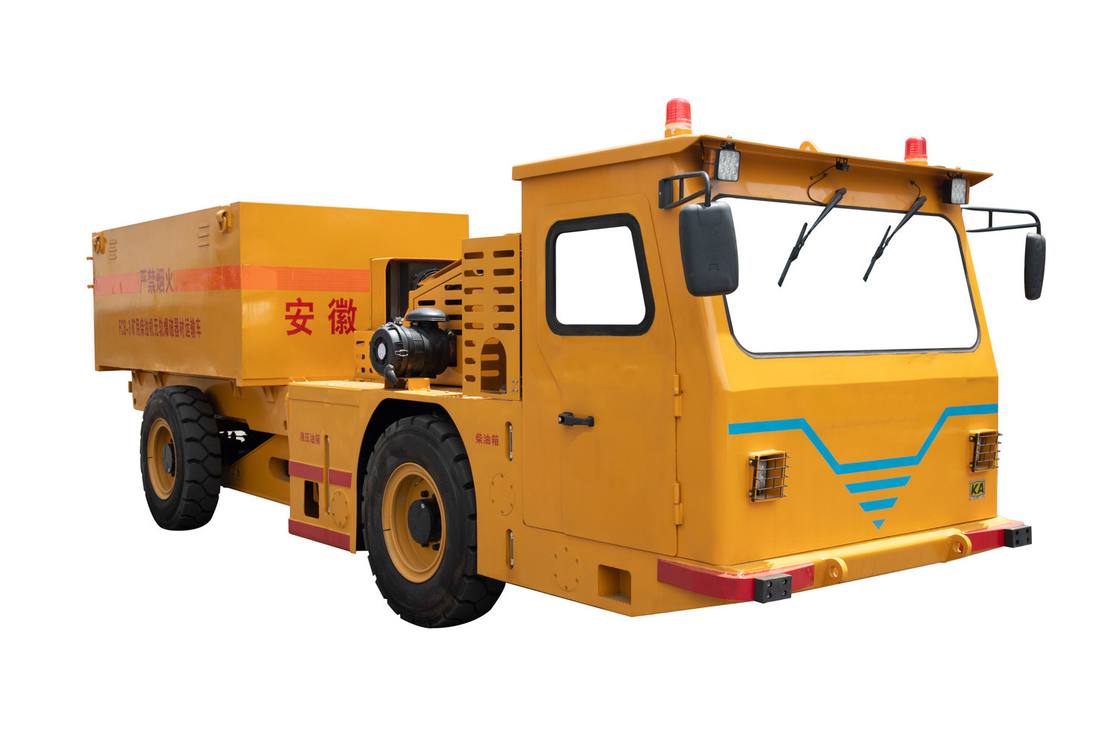

Underground Mining Utility Vehicles For Explosives Transportation Customizable
  • name
  • name
  • name
  • name
  • name
  • name

Underground Mining Utility Vehicles For Explosives Transportation Customizable

MOQ: 1 set
Payment Terms: LC, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Model NO.:
FCB-3
Transport Package:
Bulk
Specification:
7795x1900x2275mm
Trademark:
Jarlo
Origin:
China
HS Code:
8428909090
Supply Ability:
1000 Sets/Year
Customization:
Available
After-sales Service:
12 Months
Warranty:
12 Months
Highlight:

Explosives Transportation mining utility vehicles

,

Customizable underground mining utility vehicles

,

Customizable underground mining transport vehicles

Product Description
FCB-3 Mining diesel engine explosive equipment transportation truck
Underground Mining Utility Vehicles For Explosives Transportation Customizable 0
Main configuration and technical parameters
Item Unit Parameters
Overall size L mm 7640
W mm 1900
H mm 2370
Total Mass kg 8500±300
Largest traction kN ≥80
Min. Ground clearance mm 250
Gradeability (Heavy loaded) % 25
Steering angle (º) ±40
Lateral swing angle (º) ±6~8
Wheelbase mm 1530
axle track mm 3500
Turning radius Inner mm 3850
Outer mm 5850
Max. Driving speed Gear I km/h 6
Gear II km/h 12
Gear III km/h 20
Diesel engine CumminsB3.9CS4130C,96kW/2500rpm,National 4
Dynamite cabin load capacity Kg 3000
Dynamite cabin size L mm 3200
W mm 1700
H mm 1160

Main performance characteristics

1. Using American DANA wet multi-disc brakes and dual-circuit braking system to effectively ensure braking safety.
2. The closed cab adopts ergonomic design, meets FOPS/ROPS (anti-smash/anti-rollover) standards, and is equipped with air conditioning, which improves driving comfort-ability.
3. The frame adopts post-weld annealing treatment and shot blasting treatment to eliminate welding stress and ensure the quality of the whole machine.
4. The main purchased accessories are from well-known domestic brands, which can ensure the normal operation of the equipment, low failure rate and equipment maintenance frequency.

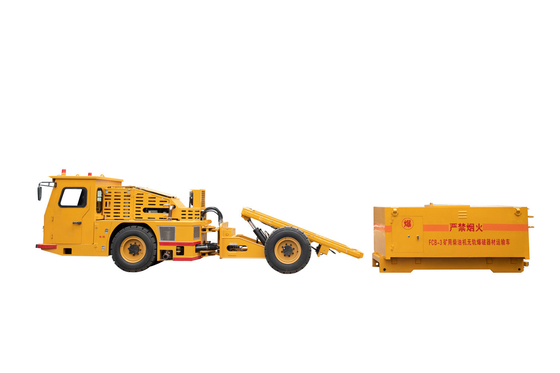

5. The chassis is equipped with a quick-change mechanism, allowing one machine to be used for multiple purposes.
6. Use the imported brand Cummins high-pressure common rail water-cooled engine, which has low emissions, good fuel economy, and can provide excellent Gradeability and power performance.
