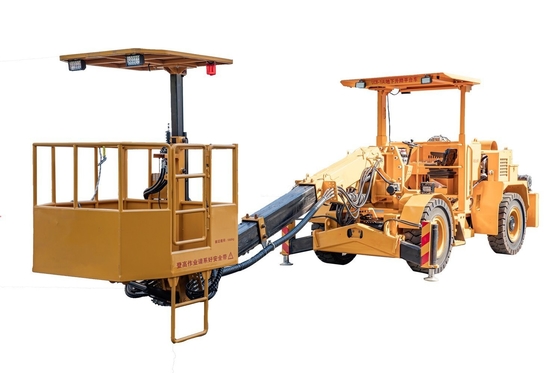

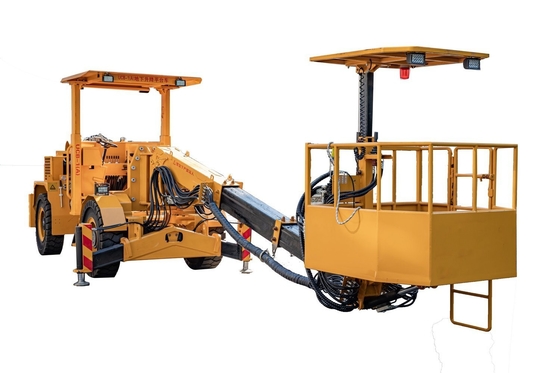

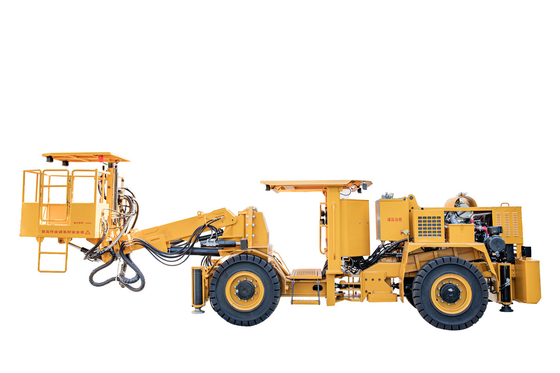

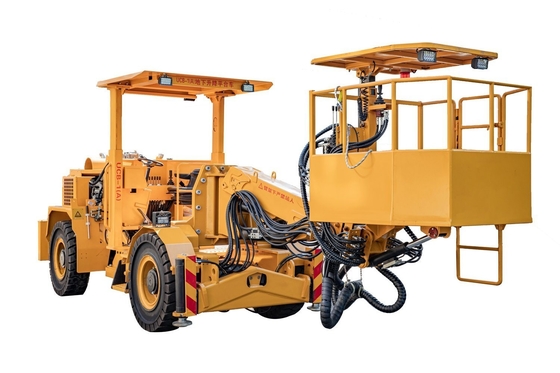

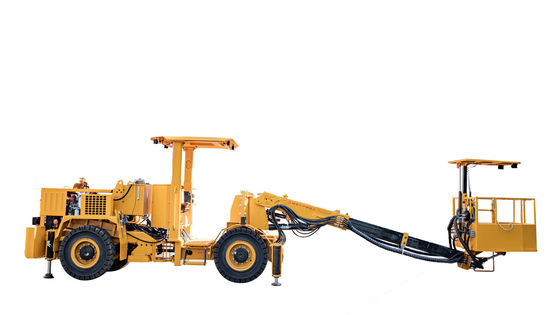

High Efficiency Underground Boom Lifter Lifting Work Platform Mining Utility Vehicles

MOQ:	1 set
Payment Terms:	LC, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model NO.:

UCB-1

Transport Package:

Bulk

Specification:

8660x1860x2390mm

Trademark:

Jarlo

Origin:

China

HS Code:

8428909090

Supply Ability:

1000 Sets/Year

Customization:

Available

After-sales Service:

12 Months

Warranty:

12 Months

Highlight:

High Efficiency Underground Boom Lifter

High Efficiency Mining Utility Vehicles

Mining Utility Vehicles Boom Lifter

Product Description

UCB-1 Boom Lifer

Overall size and turning radius
High Efficiency Underground Boom Lifter Lifting Work Platform Mining Utility Vehicles 1

Main configuration and technical parameters

Parameters Item					UCB-1
Whole vehicle	Transportation size(mm)				8660(±200)1860(±200)2390(±200)
	Max. Working height(mm)				5800
	Wheel base(mm)				3130
	Axle track(mm)				1495
	Min. Ground clearance(mm)				280
	Weight(kg)				10500±500
	Driving Speed(km/h)			Fast	Forward:21
				Slow	Forward gear:9
					Backward gear:9
	Alarm bell				Horn
	Operating system				Fully hydraulic pilot handle control
	Steering system				Hydraulic steering gear
	Fire fighting equipment				Dry powder fire extinguisher
	Cab				Can be raised and lowered
Rubber wheel chassis	Steering system				Articulated
	Maximum turning angle				±40°
	Turning radius		Inner(mm)		≤3360
			Outer(mm)		≤5360
	Gradeability		(°)		≥15
	Stable vehicle mode in working state				Tires and legs
Braking model	Service brake				Double-axle independent hydraulic-assisted dual-circuit oil-immersed multi-disc brake
	Parking brake				Spring brake, hydraulically released fail-safe brake
Drive mode					Diesel engine driven
Fuel tank capacity (L)					55
Hydraulic tank capacity (L)					210
Diesel engine	Model				Commins
	Rated power (kw)				96
	Speed (r/min)				2500
	Emissions				National 4
Lifting platform	Rated lifting weight (kg)				1000
	Rotation speed (m/s)				≤0.3
	Rising speed(m/s)	Big arm			≤0.3
		Telescopic arm			≤0.2
	Descending(m/s)	Big arm			≤0.3
		Telescopic arm			≤0.2
Electric	Task light				LED
	Working Voltage(V)				24

Main performance characteristics

The hydraulic torque converter and gearbox drive the engineering chassis, four-wheel drive, with large driving torque and strong climbing performance.
Hydraulic wet dual braking system, driving oil brake and parking closed spring brake, meeting the safety requirements of long slopes and low tunnels in mines.

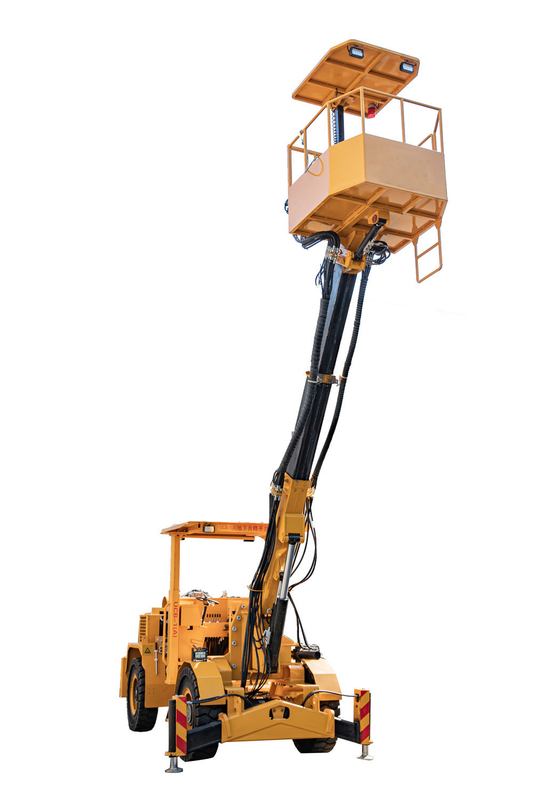

The fully hydraulic telescopic and rotating mechanical arm has strong load-bearing capacity; the double cylinders of the hanging basket platform are connected in translation, and the movement is stable. The work basket is always kept level with the ground, so that workers will not be uncomfortable due to angle problems while working. The eight-directional fully hydraulic pilot handle controls the movement of the boom, allowing flexible operation and no construction blind spots.
The articulated special chassis has a small turning radius and can meet the needs of tunnel operations to the greatest extent.
The platform has a wide range of swing and lifting, covering a large working area, reducing the number of machine moves and improves work efficiency.
Adopting the National IV emission standard, the high-power engine can provide good power for the entire machine, meeting the requirements of various working conditions while being energy-saving and environmentally friendly.
The working arm and the walking system are interlocked. When walking, the working arm cannot operate; when the working arm is operating, the walking system stops, which greatly improves the safety of workers.
