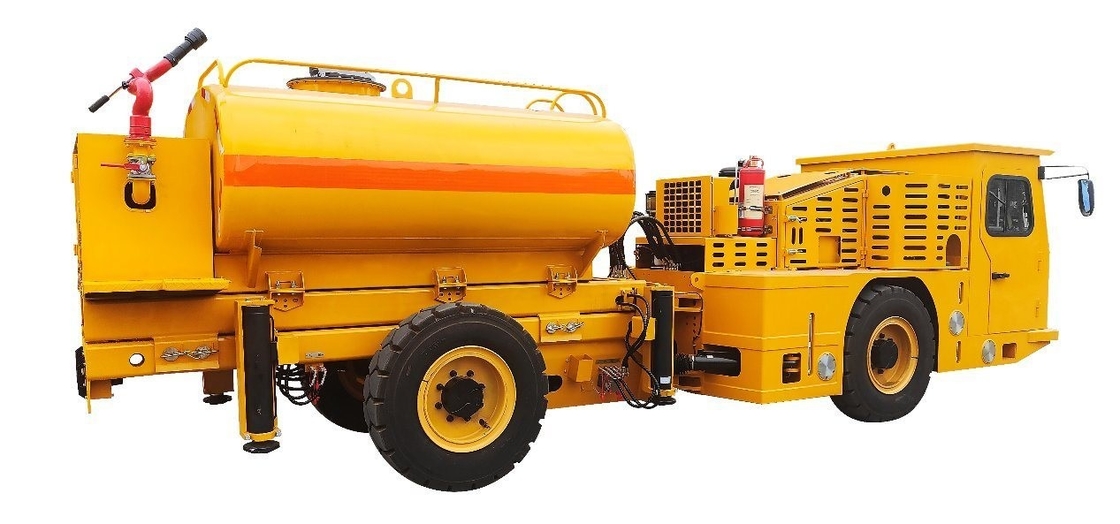

High Performance Underground Fire Fighting Vehicle Underground Water Truck For Mining

MOQ:	1 set
Payment Terms:	LC, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model NO.:

JLFWB-6

Water Pump Range:

35-40m

Transport Package:

Bulk

Specification:

7795x1900x2235mm

Trademark:

Jarlo

Origin:

China

HS Code:

8428909090

Supply Ability:

1000 Sets/Year

Customization:

Available

After-sales Service:

12 Months

Warranty:

12 Months

Highlight:

High Performance Underground Fire Fighting Vehicle

High Performance Underground Water Truck

Underground Water Truck For Mining

Product Description

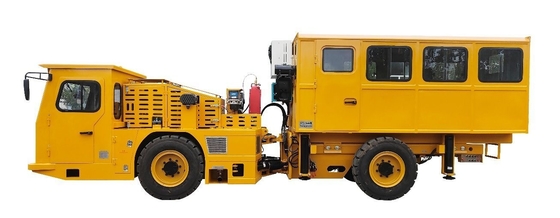

JLFWB-6 Mining Crew Transporter

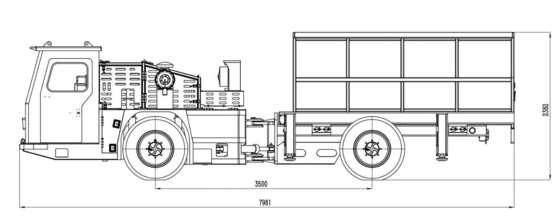

Overall dimensions

Main technical parameters

Name		Unit	Parameters
Overall size	L	mm	7795
	W	mm	1900
	H	mm	2235
Overall mass		kg	7930
Max. Track force		KN	≥80
Min. Ground clearance		mm	250
Gradeability		%	25
Steering angle		(º)	±40
Lateral swing angle		(º)	±6~8
Axle track		mm	1530
Wheel base		mm	3500
Turning radius	Inner	mm	3850
Turning radius	Outer	mm	6175
Max. Driving speed	Gear I	km/h	5±0.5
	Gear II	km/h	10±1
	Gear III	km/h	20±2
Effective volume of hydraulic oil tank		L	140
Effective volume of diesel tank		L	160
Operating ambient temperature		°C	-40~+30

Water tank parameters

Item		Unit	Parameters
Overall Size	L	mm	3163
	W	mm	1700
	H	mm	1296
Effective volume of water tank		L	3000
Water pump lift		m	35~40
Water tank working pressure		/	Normal pressure
