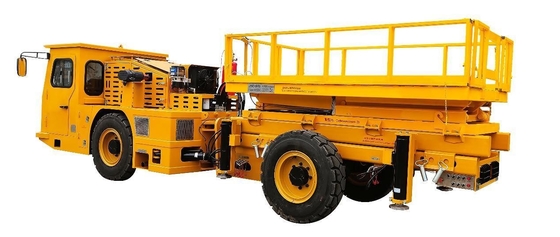

Customization Underground Utility Vehicle With Lifting Work Platform

All Category

Underground Shotcrete Machine

Underground Concrete Mixer

Underground Utility Vehicle

Underground Scaler

Underground Mining Drilling Machines

Mining Roof Bolter

Underground Rock Breaker

Mr. Luo

lance@ah-jarlo.com

+86 15215510300

Contact Now

Customization Underground Utility Vehicle With Lifting Work Platform

MOQ:	1 set
Payment Terms:	LC, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model NO.:

JLFWB-6

Lifting Height:

4900mm

Fast Changing Mechanism:

Same Chassis Replacable Rear Upper Part

Transport Package:

Bulk

Specification:

7795x1900x2235mm

Trademark:

Jarlo

Origin:

China

HS Code:

8428909090

Supply Ability:

1000 Sets/Year

Customization:

Available

After-sales Service:

12 Months

Warranty:

12 Months

Highlight:

Customization Underground Utility Vehicle

Lifting Work Platform Underground Utility Vehicle

Lifting Work Platform mining utility vehicles

Product Description

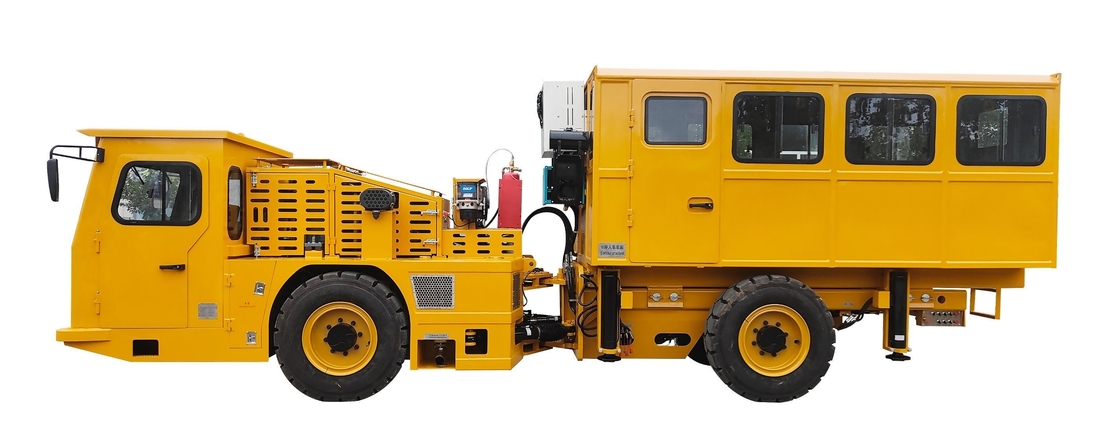

JLFWB-6 Mining Crew Transporter
Overall dimensions Customization Underground Utility Vehicle With Lifting Work Platform 0

Main technical parameters

Name		Unit	Parameters
Overall size	L	mm	7795
	W	mm	1900
	H	mm	2235
Overall mass		kg	7930
Max. Track force		KN	≥80
Min. Ground clearance		mm	250
Gradeability		%	25
Steering angle		(º)	±40
Lateral swing angle		(º)	±6~8
Axle track		mm	1530
Wheel base		mm	3500
Turning radius	Inner	mm	3850
Turning radius	Outer	mm	6175
Max. Driving speed	Gear I	km/h	5±0.5
	Gear II	km/h	10±1
	Gear III	km/h	20±2
Effective volume of hydraulic oil tank		L	140
Effective volume of diesel tank		L	160
Operating ambient temperature		°C	-40~+30

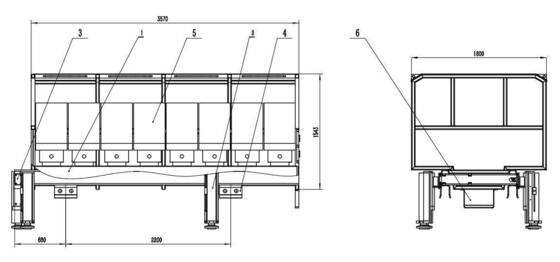

Passenger carriage

Item		Unit	Parameters
Overall Size	L	mm	3570
	W	mm	1800
	H	mm	1543
Rated number of passengers			16
Rated load		Kg	1600
Passenger seat loading weight adjustment range		Kg	40-130
