UPS-ZT10（A) Underground Shotcrete Machine Wet Concrete Spraying Machine with Yunnei Engine Cab

Brand Name:	Jarlo
Model Number:	UPS-10JT
MOQ:	1
Price:	45000-55000 USD
Packaging Details:	Container loaded
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Anqing China

Certification:

China National Mining Safety Certificate

Capacity:

10 Cubic Meters/Hour

Power:

Deisel Engine For Driving, Electric Motor For Working

FOPS/ROPS

Engine:

Yunnei

Supply Ability:

1000 sets/year

Highlight:

Yunnei Engine Cab Underground Shotcrete Machine

Concrete Spraying Machine

Product Description

UPS-10ZT(A)Deisel Engine Shotcrete Machine

1. Performance

1. It adopts a sliding chassis design, wireless remote control wet spraying operation and walking system; it is suitable for small-section mine tunnels and various harsh construction environments.

2. The fully hydraulic telescopic and rotating mechanical arm has strong load-bearing capacity, stable movement, easy operation and no construction blind spots.

3. The spray arm is located at the front of the unit and do not interfere with other arms, it maximizing the flexibility of the robotic booms. Moreover, the rotation angle of the main arm can reach 360 degrees and the spraying is even and without dead spots.

4. Its small size allows it be driven flexibly and operated in mines of different sizes; It has a high integration and is equipped with an accelerator pump.

5. Each wet spraying machine only needs one shotcrete operator and one assistant, which greatly reduces labor costs.

6. The pumping system has strong suction of concrete which ensures longer service life and low risk of pipe blockage.

2. Dimension

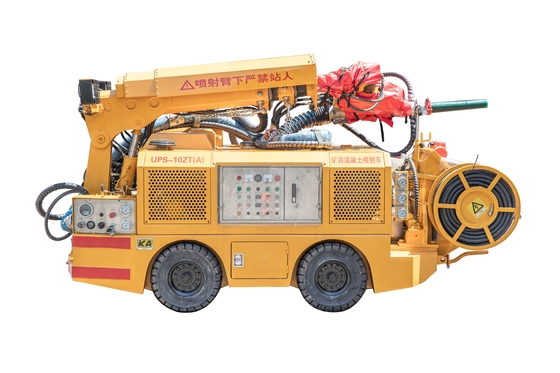

UPS-ZT10（A) Underground Shotcrete Machine Wet Concrete Spraying Machine with Yunnei Engine Cab 0

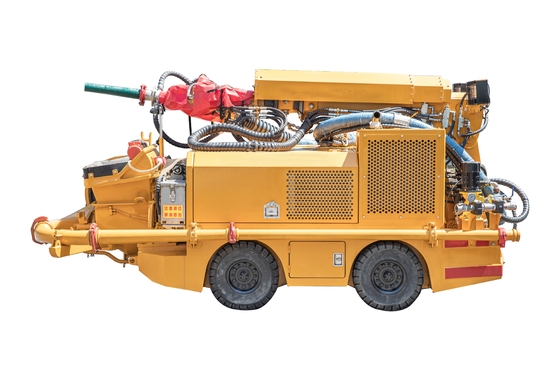

UPS-ZT10（A) Underground Shotcrete Machine Wet Concrete Spraying Machine with Yunnei Engine Cab 1

3.Technical parameters

Specifications
Total Weight(kg)		4200 kg
Dimension(L×W×H,mm)		3450×1450×1800mm(±50)
Actual concrete spraying capacity		10 m³/h
Power mode (dual power)		Driving: Diesel engine (retractable boom) Working: External 380V AC
Total power (engine/motor, kw)		Engine:36.8 kW Motor:18.5kW
Maximum concrete spraying pressure (MPa)		5 MPa
Driving System Parameters
Driving and steering		Four-wheel drive, skid steering
Brake system		Driving: closed spring brake, Parking: hydraulic release
Gradeability		22°
Turning radius		4200 mm
Driving speed		4.5km/h
Min. Ground Clearance		≥180 mm
Boom system of concrete spraying machine
Structure		Main arm rotation, spray arm pitch + telescopic
Maximum effective spray range	Upward	5m
	Forward	6m
	Downward	2m
	Width	12m
Boom rotation angle		360°
Boom pitch range		(Upward 39.4° / Downward 30° )
Axial rotation range of nozzle seat		270°
Axial swaying range of nozzle seat		240°
Nozzle swaying angle+movement		8°*360°Rotation
Conveying pipeline(mm)		Steel pipe:75 Hose:63
Conveying pipeline cleaning		Water+Air Washing
