Underground Shotcrete Machine

8m3/H Underground Shotcrete Machine Hydraulic Wet Mix Shotcrete Machine

All Category

Underground Mining Drilling Machines

Underground Rock Breaker

Mr. Luo

lance@ah-jarlo.com

+86 15215510300

Contact Now

8m3/H Underground Shotcrete Machine Hydraulic Wet Mix Shotcrete Machine

MOQ:	1 set
Payment Terms:	LC, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001: 2000

Model NO.:

UPS-8ZT

Shotcrete Type:

Wet

Machining Process:

Hydraulic

Structure:

Rotor Type

Productivity:

8 Cubic Meters/H

Feeding Height:

1400mm

Vibrating Amplitude:

None

Condition:

New

Color:

Orange

Transport Package:

Bulk

Specification:

3025x1000x1380mm

Trademark:

Jarlo

Origin:

China

HS Code:

870590000

Supply Ability:

1000 Sets/Year

Customization:

Available

After-sales Service:

12 Months

Warranty:

12 Months

Highlight:

8m3/H Underground Shotcrete Machine

Hydraulic Wet Mix Shotcrete Machine

8m3/H Wet Mix Shotcrete Machine

Product Description

UPS-8ZT Diesel Wet Concrete Spraying Machine

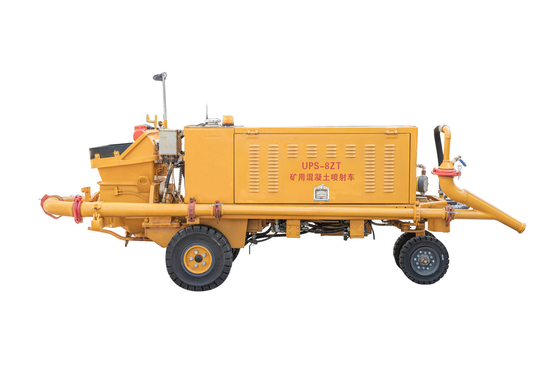

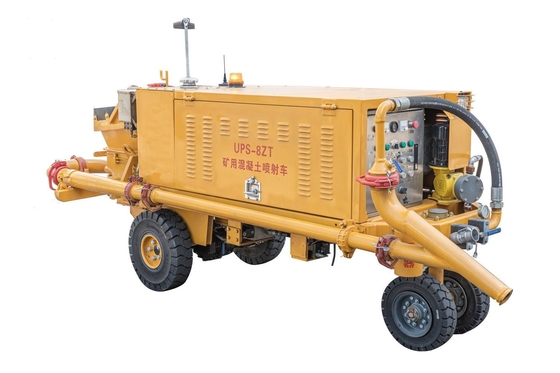

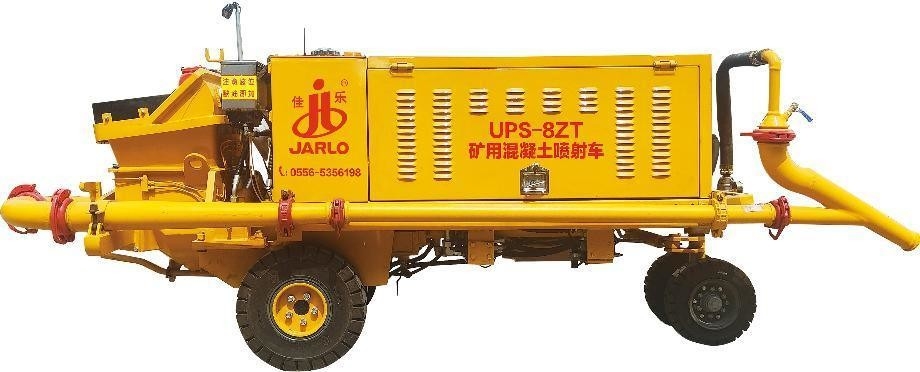

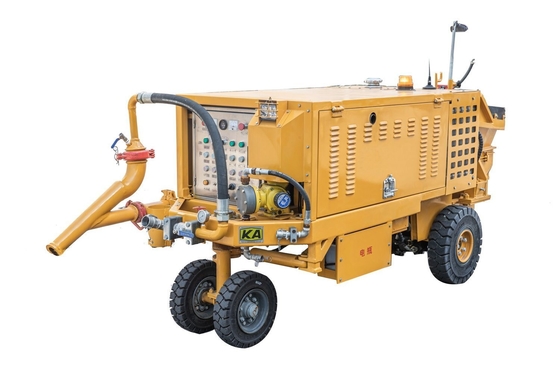

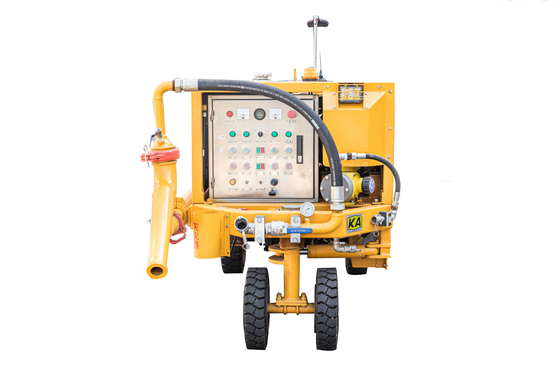

Appearance
8m3/H Underground Shotcrete Machine Hydraulic Wet Mix Shotcrete Machine 0

Dimensions 8m3/H Underground Shotcrete Machine Hydraulic Wet Mix Shotcrete Machine 1

Turning Radius 8m3/H Underground Shotcrete Machine Hydraulic Wet Mix Shotcrete Machine 3

Main configuration and technical parameters

Item			Unit	Parameters
Dimension(L×W×H,mm)			mm	3025×1000×1380(±50)
Total weight(kg)			kg	1800
Min. turning radius			mm	Inner 2670 Outer4045
Min. ground clearance			mm	105
Concrete slump			mm	120~180
Concrete bore size × stroke			mm	∅140×550
Shotcrete aggregate particle size			mm	≤15
Rated working pressure			MPa	0.5
Air consumption			m³/min	6
Max. traction			kN	30
Hopper loading height			mm	1000
Remote control distance			m	50
Driving System	Type of moving		-	On Tyre, Remote control
	Speed		km/h	4
	Gradeability		(°)	10
	Approaching angle		(°)	±40
	Braking		--	Parking: closed spring brake, hydraulic release
	Brake distance		m	≤0.5
	Diesel Engine	Rated Power	kW	10
		Rated rotation Speed	r/min	2400

Main performance features

1. Using hand-held nozzles for spraying operations can flexibly switch between single-head and multiple-head spraying operations at the same time.
2. Wireless remote control driving, the remote control distance is up to 50m, which greatly improves the safety of operation.
3. It has outstanding advantages such as high injection efficiency, long conveying distance, low rebound rate, small wear of machine parts, long service life, low consumption of accessories, and low technical requirements for operators.
