Hydraulic Robotic Shotcrete Machine Wet Shotcrete Machine 20m3/H
  • name
  • name
  • name
  • name
  • name
  • name

Hydraulic Robotic Shotcrete Machine Wet Shotcrete Machine 20m3/H

MOQ: 1 set
Payment Terms: LC, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001: 2000
Model NO.:
UPS-20JT
Shotcrete Type:
Wet
Machining Process:
Hydraulic
Structure:
Rotor Type
Productivity:
20 Cubic Meters/H
Feeding Height:
1400mm
Vibrating Amplitude:
None
Condition:
New
Color:
Orange
Transport Package:
Bulk
Specification:
7670x2050x2350mm
Trademark:
Jarlo
Origin:
China
HS Code:
870590000
Supply Ability:
1000 Sets/Year
Customization:
Available
After-sales Service:
12 Months
Warranty:
12 Months
Highlight:

Hydraulic Robotic Shotcrete Machine

,

Wet Shotcrete Machine 20m3/H

,

Robotic Shotcrete Machine 20m3/H

Product Description

UPS-20JT(C) Diesel Wet Concrete Spraying Machine

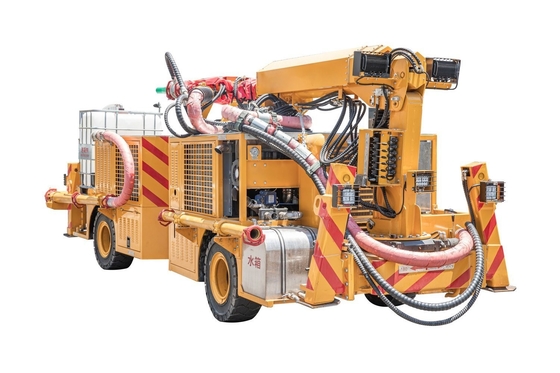

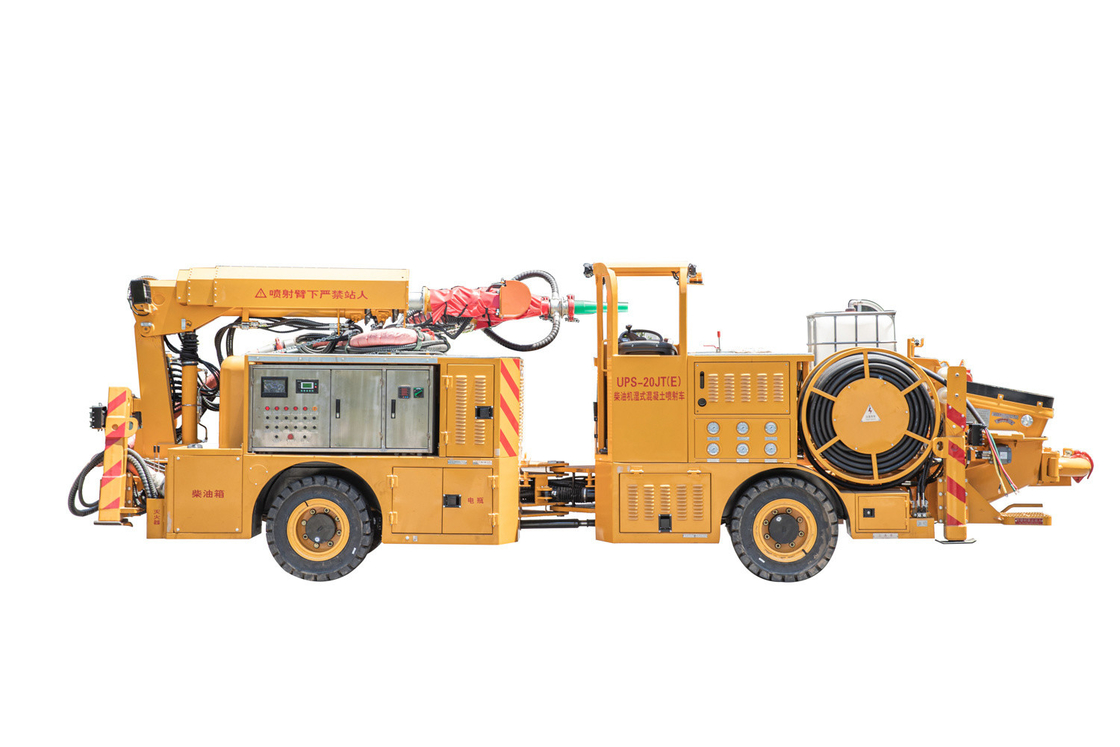

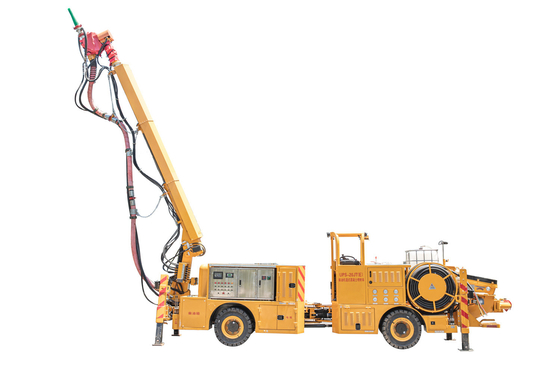

AppearanceHydraulic Robotic Shotcrete Machine Wet Shotcrete Machine 20m3/H 0

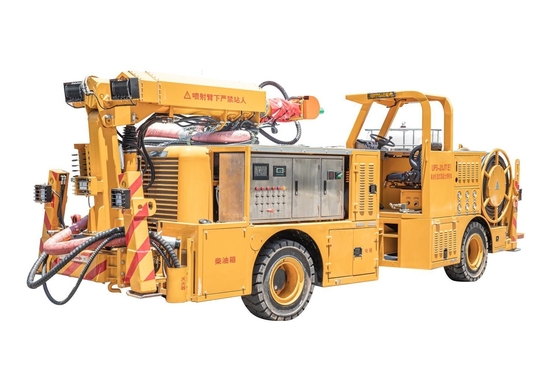

Dimensions

Hydraulic Robotic Shotcrete Machine Wet Shotcrete Machine 20m3/H 1Hydraulic Robotic Shotcrete Machine Wet Shotcrete Machine 20m3/H 2

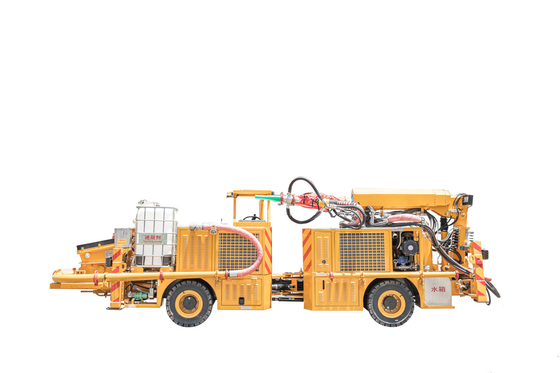

Turning RadiusHydraulic Robotic Shotcrete Machine Wet Shotcrete Machine 20m3/H 3

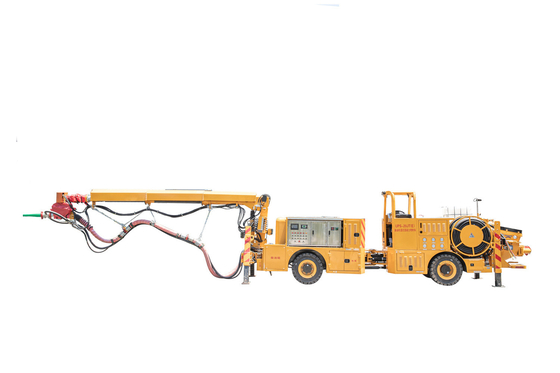

Spraying Scope

Hydraulic Robotic Shotcrete Machine Wet Shotcrete Machine 20m3/H 4

  1. Main Configuration And Technical Parameters
Items Parameters and configuration Remarks
Parameters UPS-20JT(C)
Total Weight(kg) 10700
Dimension(L×W×H,mm) 7670×2050×2350(±50)
Actual concrete spraying capacity 20m3/h
Power mode (dual power) Driving: Diesel engine (retractable boom, pumping and cleaning equipment)
Working: External 380V AC
Total power (engine/motor, kw) Engine:97 kw
Motor:37+37(Total power 74 kw)
Maximum concrete spraying pressure (MPa) 7.5
Configuration
Chassis Manufacturer Anhui Jarlo Construction Machinery Co., Ltd.
Engine Type Four-cylinder water-cooled turbo
Manufacturer Commins
Rated power(kw/rpm) 97/2300
Exhaust emission standard National 4
Driving and steering 4-Wheel drive, 4-wheel steering
Front axle/rear axle manufacturer Fenyi
Articulate Steering Angle(°) 40
Brake system Driving: hydraulic wet type
Parking: spring brake, hydraulic release
Gradeability 20°
Turning radius 3950/5850mm
Driving speed Max. 12km/h
Min. Ground Clearance(mm) 260
FOPS & ROPS Satisfied

Items Parameters and configuration
Model:UPS-20JT(C)		 Remarks
Concrete jet pump Manufacturer Anhui Jarlo Construction Machinery Co., Ltd.
Type Piston pumping system
Capacity(m3/h) 20m3/h
Concrete specification slump 12~18(cm)
Max.Aggregate size 25(mm)
Shotcrete aggregate particle size Max. 25(mm)
Concrete delivery valve type S Pipe valve
Concrete pumping pressure 7.5(MPa)
Concrete bore size × stroke φ160*800(mm)
Main cylinder diameter 90(mm)
Hopper volume 0.4(m3)
Hopper loading height 1.25(m)
Vibrator 380V
Boom of concrete spraying machine Manufacturer Anhui Jarlo
Structure type Main arm rotation, spray arm pitch + telescopic
Maximum effective spray range Upward 10(m)
Forward 8(m)
Downward 3(m)
Width 16(m)
Boom rotation angle 360°
Boom pitch range (Upward 64° / Downward 40° )
Axial rotation range of nozzle sea 360(°)
Axial swing range of nozzle seat 240(°)
Nozzle swaying angle+movement 8°*360° Rotation
Operation Dual control: 100 meters wireless remote control + 16 meters wired
Remote control system JARLO JARLO
Boom balance valve Italian
Conveying pipeline(mm) Steel pipe:80 Hose:76
Conveying pipeline cleaning Water washing + air washing
Hydraulic system Main oil pump Type and manufacturer Electric proportional piston pump PUSH
Rated pressure 28(MPa)
Flow 110(L/min)
Main pump valve Taiwan
Swing cylinder valve Taiwan
Auxiliary oil pump Type and manufacturer Piston pump,
Rated pressure 28(MPa)
Flow 41(L/min)
Air compressor Nominal volume flow 7.3(m3/min)
Motor nominal power 37(kw)
Exhaust pressure(Mpa) Rated pressure0.55MPa
Accelerator automatic batching system Manufacturer JARLO
Type Hose pump
Flow 0~800(L/h)
Delivery pressure 10(bar)
Accelerator flow valve American Hydraforce
Accelerator tank volume 500 L
High Pressure washing pump Manufacturer Black cat 1812
Max. Output pressure (MPa) 15
Output flow(L/min) 15
Water tank volume(L) 175
Electrical System Motor protection level IP55
Safety protection Leakage protection, safety grounding
Controller form and manufacturer Special controller, Germany IFM
Low voltage control electrical appliance brand Schneider
Cable Cable drum drive method Hydraulic drive
Cable specifications 3*50+1*16
Cable length 100m
External power requirements Alternating current 380V,200KVA
Other configurations Working lamp LED
Hydraulic legs Available
DOC+CDPF Available
Automatic fire extinguisher Available Optional
