2m3 Concrete Mixer loader wet concrete mixing for shotcrete machine

MOQ:	1 set
Payment Terms:	LC, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model NO.:

JDY-2J

Special Function:

Concrete Mixing While Transporting

Transport Package:

Bulk

Specification:

6780x2040x1950mm

Trademark:

Jarlo

Origin:

China

HS Code:

8429510000

Supply Ability:

1000 Sets/Year

Customization:

Available

After-sales Service:

12 Months

Warranty:

12 Months

Highlight:

4 Ton Loader Concrete Mixer

2m3 Loader Concrete Mixer

Convenient Operation concrete mixer loader

Product Description

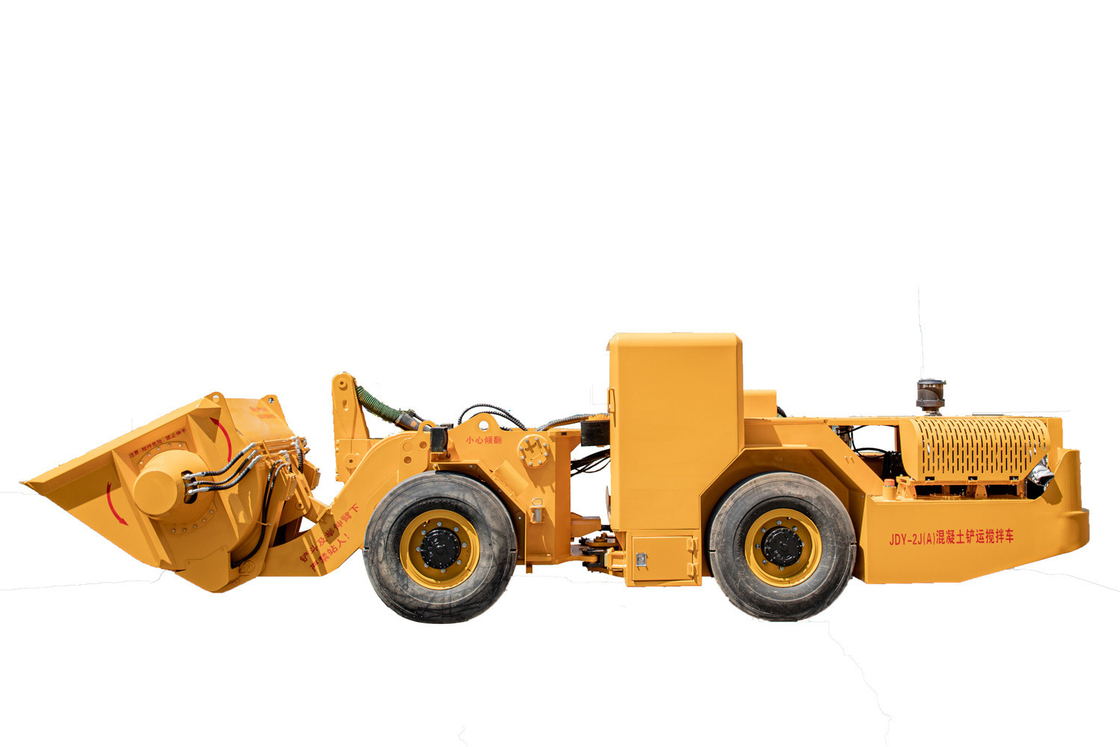

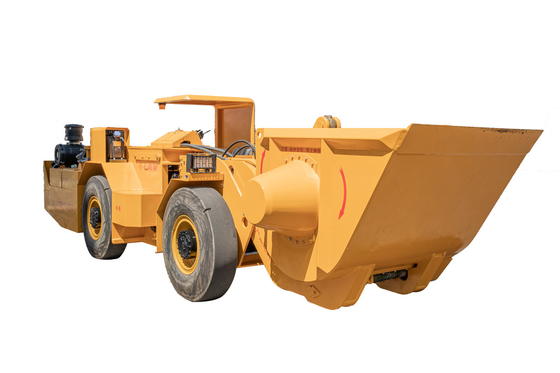

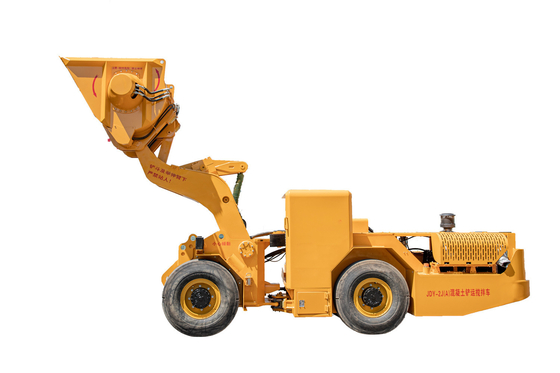

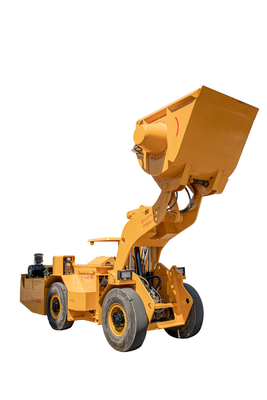

JDY-2J Concrete Mixing Loader

Dimensions

Turning Radius

Main configuration and technical parameters

Item		Technical parameters	Remarks
Overall Specs.	Overall size(mm)	8020×2280×2250
	Loader capacity(m³)	2
	Rated loading weight(t)	4
	Max. unload height(mm)	2800
	Max. unload distance(mm)	1400
	Max. Lifting height(mm)	4290
	Max. Traction power(kN)	100
	Max. shoveling force(kN)	60
	Wheel base(mm)	2630
	axle track(mm)	1500
	Min. Ground clearance(mm)	245
	Gradeability(°)	22°
	Alarm bell	horn
	Control system	Fully hydraulic pilot handle control
	Firefighting equipment	Dry powder fire extinguisher
	Cab	Detachable open cab
	Weight(kg)	12000
	Stirring shaft speed(r/min)	14±2
Power system	Engine manufacturer	Guangxi Yuchai
	Engine power/speed	140kw/2200rpm
	Maximum torque	720N•m/1700rpm
Drive System	Drive mode	Closed hydro-static four-wheel drive
	Service brake	Hydraulic brake, spring release
	Parking brake	Spring brake, hydraulic release
	Steering method	Articulated steering, double-acting hydraulic cylinder drive
	Steering angle	±40°
	Driving speed	High speed:11km/h
	Driving speed	Low speed:5.5km/h
	Trans-axle+gearbox	DR30.26
	Tire	12.00-20
	Min. turning radius (mm)	Inner:2820
	Min. turning radius (mm)	Outer:5150
	Exhaust gas treatment device	GB 20891 The third phase
Electrical System	Operating Voltage	24V
	Generator	28V/70A
	Battery	Two12V/105Ah
	Light	2 headlight108w,4 rear light21w

Performance characteristics

1. Small size, convenient operation, suitable for normal driving in narrow mines and tunnels

2. It adopts two low-speed and high-torque internal curved radial piston stirring motors, which occupy a small space but have large torque and long service life;

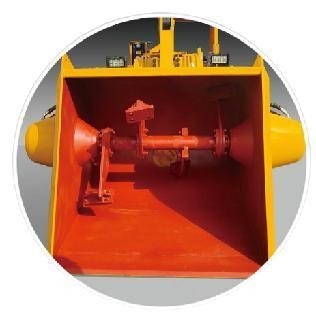

3. The mixing bucket is made of high-strength steel plates and detachable mixing blades, which have low maintenance costs;
4. Equipped with a high-pressure strong power common rail engine (190 horsepower);
5. Adopt Italian SAFIM hydraulic braking system, closed hydro-static drive, with high reliability, strong climbing ability and good control performance;
6. The lifting arm adopts two symmetrically placed cylinders which have stable structure and strong lifting capacity;
7. The articulated body can be disassembled to go down the well, with flexible steering and a large steering angle (±40 degrees).
