Rotor Type Underground Shotcrete Machine Shotcrete Robot In Tunnel Construction

MOQ:	1 set
Payment Terms:	LC, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001: 2000

Shotcrete Type:

Wet

Machining Process:

Hydraulic

Structure:

Rotor Type

Productivity:

12 Cubic Meters/H

Feeding Height:

1400mm

Vibrating Amplitude:

None

Condition:

New

Color:

Orange

Transport Package:

Bulk

Specification:

6350x1500x1800mm

Trademark:

Jarlo

Origin:

China

HS Code:

870590000

Supply Ability:

1000 Sets/Year

Customization:

Available

After-sales Service:

12 Months

Warranty:

12 Months

Highlight:

Tunnel Construction Underground Shotcrete Machine

Rotor Type Underground Shotcrete Machine

Tunnel Construction Shotcrete Robot

Product Description

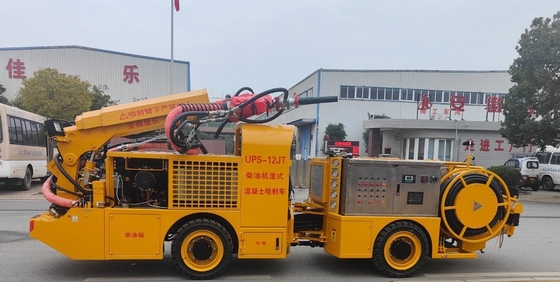

UPS-12JT Diesel Wet Concrete Spraying Machine

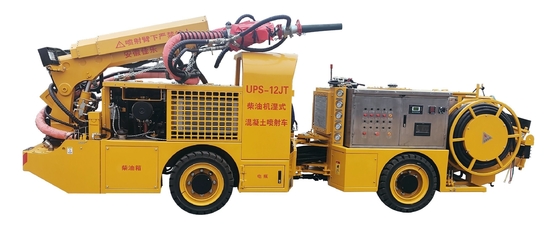

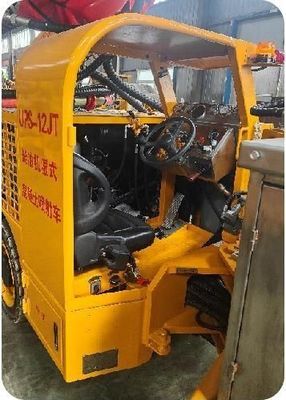

Appearance

Dimensions

Rotor Type Underground Shotcrete Machine Shotcrete Robot In Tunnel Construction 1

Turning Radius Rotor Type Underground Shotcrete Machine Shotcrete Robot In Tunnel Construction 3

Spraying Scope

Main configuration and technical parameters

Items						Parameters and Configuration	Remarks
Parameters						UPS-12JT
Total Weight(kg)						7800
Dimension(L×W×H,mm)						6490×1500×1800
Actual concrete spraying capacity						12m³/h
Power mode (dual power)						Driving: Diesel engine (retractable boom, pumping and cleaning equipment) Working: External 380V AC
Total power (engine/motor, kw)						Engine:36.8kw Motor:22+22(Total power 44 kw)
Maximum concrete spraying pressure (MPa)						7
Configuration
Chassis	Manufacturer					Anhui Jarlo Construction Machinery Co., Ltd.
	Engine			Type		Four-cylinder water-cooled turbo
				Rated power(kw/rpm)		36.8/2200
				Exhaust emission standard		National 4
	Driving and steering					4-Wheel drive, articulated steering
	Front axle/rear axle manufacturer					Fenyi
	Articulate Steering Angle(°)					+40/-40
	Brake system					Driving: hydraulic wet type Parking: spring brake, hydraulic release
	Gradeability					20°
	Turning radius					2470/4250
	Driving speed					Max. 10km/h
	Min. Ground Clearance(mm)					220
	FOPS & ROPS					Satisfied
Concrete jet pump	Manufacturer					Anhui Jarlo Construction Machinery Co., Ltd.
	Type					Piston pumping system
	Capacity(m³/h)					12m³/h
	Concrete specification	slump				12~18cm
		Max.Aggregate size				12mm
	Shotcrete aggregate particle size					Max. 12
	Concrete delivery valve type					S Pipe valve
	Concrete pumping pressure					7(MPa)
	Concrete bore size × stroke					φ140*550mm
	Main cylinder diameter					80mm
	Hopper volume					0.2(m³)
	Hopper loading height					0.95m
	Vibrator					Electric vibrator and stirrer, bottom opening discharge gate
Boom of concrete spraying machine	Manufacturer					Anhui Jarlo
	Structure type					Main arm rotation, spray arm pitch + telescopic
	Maximum effective spray range				Upward	7m
					Forward	6m
					Downward	2m
					Width	12m
	Boom rotation angle					360°
	Boom pitch range					(Upward 64° / Downward 40° )
	Axial rotation range of nozzle sea					360(°)
	Axial swing range of nozzle seat					240(°)
	Nozzle swaying angle+movement					8°*360° Rotation
	Operation					Dual control: 100 meters wireless remote control + 16 meters wired
	Remote control system					JARLO
	Conveying pipeline(mm)					Steel pipe:70 Hose:63
	Conveying pipeline cleaning					Water+Air Washing
Hydraulic system	Main oil pump		Type and manufacturer			Electric proportional piston pump PUSH
			Rated pressure			28(MPa)
			Flow			60(L/min)
			Main pump valve			Taiwan
			Swing cylinder valve			Taiwan
	Auxiliary oil pump		Type and manufacturer			Piston pump,PUSH
			Rated pressure			28(MPa)
			Flow			41(L/min)
Air compressor	Nominal volume flow					6 m³/min
	Motor nominal power					22 kw
	Exhaust pressure(Mpa)					Rated 0.5MPa,Max. 0.7MPa
Accelerator automatic batching system	Manufacturer					JARLO
	Type					Hose pump
	Flow					0~800(L/h)
	Delivery pressure					10(bar)
	Accelerator flow valve					American Hydra-force
	Accelerator tank volume					120 L
High Pressure washing pump	Manufacturer					Black cat 1812
	Max. Output pressure (MPa)					15
	Output flow(L/min)					15
	Water tank volume(L)					78
Electrical System	Motor protection level					IP55
	Safety protection					Leakage protection, safety grounding
	Controller form and manufacturer					Special controller, Germany IFM
	Motor brand					Wannan motor
	Low voltage control electrical appliance brand					Schneider
Cable	Cable drum drive method					Hydraulic drive
	Cable specifications					325+116
	Cable length					50
	External power requirements					AC 380V,100KVA
Other configurations	working lamp					LED
	Hydraulic legs					Available
	DOC+CDPF					Available
	Automatic Fire Extinguishing						Optional
