Underground Shotcrete Machine
>
High Productivity Underground Shotcrete Machine Crawler Type Diesel Powered
All Category

Underground Shotcrete Machine

Underground Concrete Mixer

Underground Utility Vehicle

Underground Scaler

Underground Mining Drilling Machines

Mining Roof Bolter

Underground Rock Breaker
Contact Us
Mr. Luo
lance@ah-jarlo.com
+86 15215510300
Contact Now
High Productivity Underground Shotcrete Machine Crawler Type Diesel Powered
  • name
  • name
  • name
  • name
  • name
  • name

High Productivity Underground Shotcrete Machine Crawler Type Diesel Powered

MOQ: 1 set
Payment Terms: LC, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO9001: 2000
Model NO.:
UPS-20ZL
Shotcrete Type:
Wet
Machining Process:
Hydraulic
Structure:
Rotor Type
Productivity:
20 Cubic Meters/H
Feeding Height:
1400mm
Vibrating Amplitude:
None
Condition:
New
Color:
Orange
Crawler Type:
Yes
Transport Package:
Bulk
Specification:
5840x1725x2080mm
Trademark:
Jarlo
Origin:
China
HS Code:
870590000
Supply Ability:
1000 Sets/Year
Customization:
Available
After-sales Service:
12 Months
Warranty:
12 Months
Highlight:

Underground Shotcrete Machine Crawler Type

,

High Productivity Underground Shotcrete Machine

,

Diesel Powered underground shotcrete sprayer

Product Description

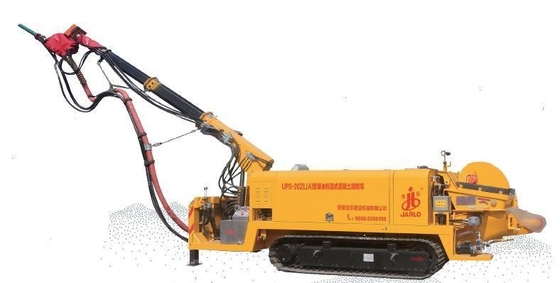

UPS-20ZL Diesel Wet Concrete Spraying Machine

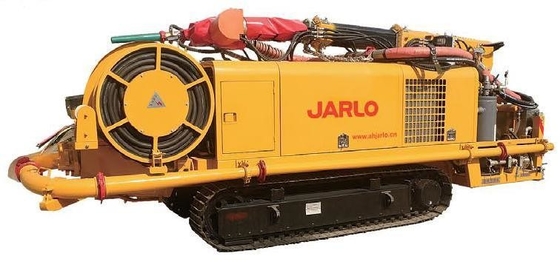

AppearanceHigh Productivity Underground Shotcrete Machine Crawler Type Diesel Powered 0

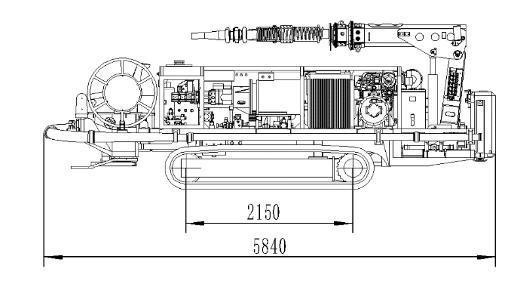

DimensionsHigh Productivity Underground Shotcrete Machine Crawler Type Diesel Powered 1
High Productivity Underground Shotcrete Machine Crawler Type Diesel Powered 2

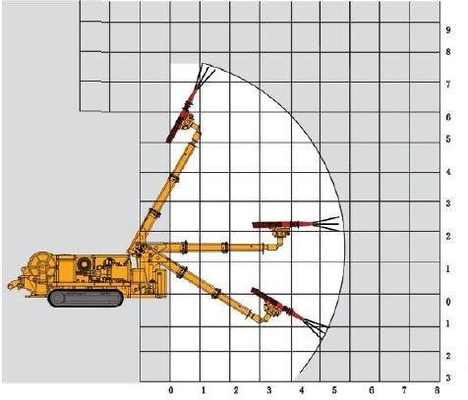

  1. Spraying Scope
High Productivity Underground Shotcrete Machine Crawler Type Diesel Powered 3

Main configuration and technical parameters
Items Parameters and configuration Remark
Parameters UPS-20ZL(A)
Total weight(kg) 7780
Dimension(L×W×H,mm) 5840×1725×2080(±50)
Actual concrete spraying capacity(m3/h) 20
Power mode (dual power) Driving: Diesel engine (retractable boom, pumping and cleaning equipment)
Working: External 380V AC power
Total power (engine/motor, kw) Engine:48kw
Motor:37+37(total power74kw)
Maximum concrete spraying pressure (MPa) 7
Parameters
Chassis Manufacturer Anhui Jarlo Construction Machinery Co., Ltd.
Engine Type Four-cylinder water-cooled turbo
Rated power(kw/rpm) 48/2200
Exhaust emission standard National 4
Driving and steering Track driven steering
Brake system Driving: hydraulic wet type
Parking: spring brake, hydraulic release
Gradeability 20°
Turning radius 2980mm
Driving speed) Max. 4.2km/h
Min. Ground Clearance(mm) 200
Concrete jet pump Manufacturer Anhui Jarlo Construction Machinery Co., Ltd.
Type Piston pumping system
Capacity(m3/h) 20m3/h
Concrete specifications Slump 12~18(cm)
Max.Aggregate size 25(mm)
Shotcrete aggregate particle size Max. 25(mm)
Concrete delivery valve type S Pipe valve
Concrete pumping pressure 7(MPa)
Concrete bore size × stroke φ160*700(mm)
Main cylinder diameter 90(mm)
Hopper volume 0.4(m3)
Hopper loading height 1.25(m)
Vibrator 380V
Boom of concrete spraying machine Manufacturer Anhui Jarlo
Structure type Main arm rotation, spray arm pitch + telescopic
Maximum effective spray range Upward 7(m)
Forward 6(m)
Downward 2(m)
Width 12(m)
Boom rotation angle 360°
Boom pitch range (Upward 64° / Downward 40° )
Axial rotation range of nozzle sea 360°
Axial swing range of nozzle seat 240°
Boom proportional multi-way valve Germany Hawe load sensitive proportional multi-way valve
Nozzle swaying angle+movement 8°*360° Rotation
Operation Dual control: 100 meters wireless remote control + 16 meters wired
Remote control system JARLO
Conveying pipeline(mm) Steel pipe: 80  Hoses: 76
Conveying pipeline cleaning Water washing + air washing
Hydraulic system Main oil pump Type and manufacturer Electric proportional piston pump, PUSH(motor 30 kw)
Rated pressure 28(MPa)
Flow 110(L/min)
Main pump valve Italian ATOS
Swing cylinder valve Italian ATOS
Auxiliary oil pump Type and manufacturer Piston pump, SUNNY
Rated pressure 28(MPa)
Flow 41(L/min)
Air compressor Nominal volume flow 7.3(m3/min)
Motor nominal power 37(kw)
Exhaust pressure(Mpa) Rated pressure0.55MPa
Accelerator automatic batching system Manufacturer JARLO
Type Hose pump
Flow 0~800(L/h)
Delivery pressure 10(bar)
Accelerator tank volume 300L
Electrical System Motor protection level IP55
Safety protection Leakage protection, safety grounding
Controller form and manufacturer Special controller, Germany IFM
Motor brand Wannan motor
Low voltage control electrical appliance brand Schneider
Cable Cable drum drive method Hydraulic drive
Cable specifications 3*35+1*16
Cable length 50m
External power requirements Alternating current 380V,200KVA
Other configurations Working lamp LED
Hydraulic legs Available
DOC+CDPF Available
