Underground Shotcrete Machine

10m3/H Underground Shotcrete Machine Customization Wet Shotcrete Machine

All Category

Underground Mining Drilling Machines

Underground Rock Breaker

Mr. Luo

lance@ah-jarlo.com

+86 15215510300

Contact Now

10m3/H Underground Shotcrete Machine Customization Wet Shotcrete Machine

MOQ:	1 set
Payment Terms:	LC, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001: 2000

Model NO.:

UPS-10ZT

Shotcrete Type:

Wet

Machining Process:

Hydraulic

Structure:

Rotor Type

Productivity:

10 Cubic Meters/H

Feeding Height:

1400mm

Vibrating Amplitude:

None

Condition:

New

Color:

Orange

Transport Package:

Bulk

Specification:

3660x1450x1750mm

Trademark:

Jarlo

Origin:

China

HS Code:

870590000

Supply Ability:

1000 Sets/Year

Customization:

Available

After-sales Service:

12 Months

Warranty:

12 Months

Highlight:

Customization Wet Shotcrete Machine

10m3/H Underground Shotcrete Machine

Customization Underground Shotcrete Machine

Product Description

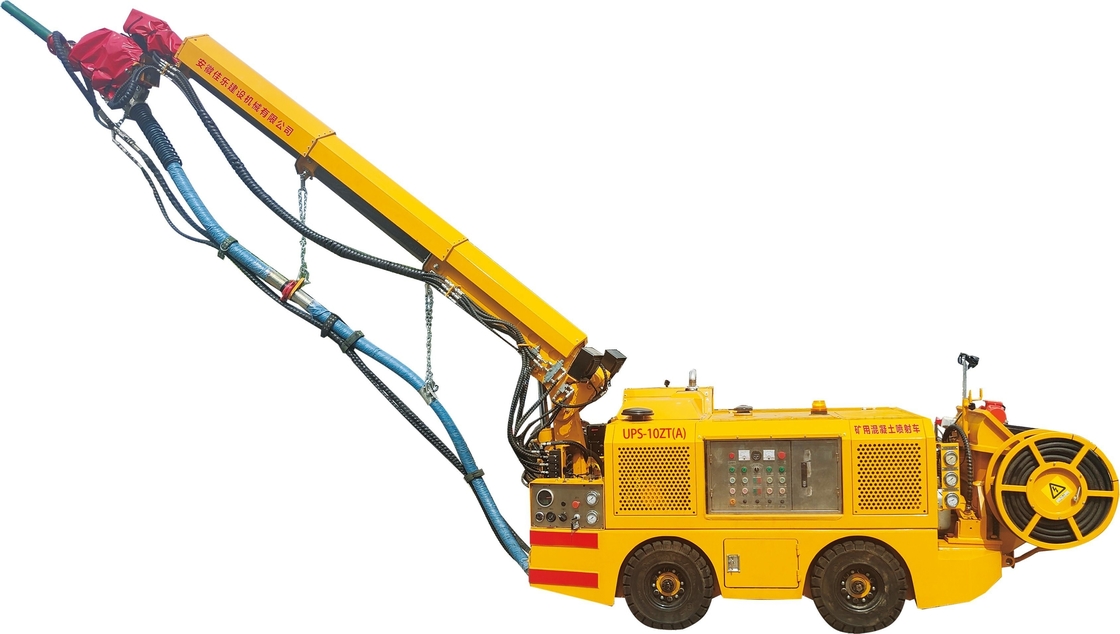

UPS-10ZT(A) Diesel Wet Concrete Spraying Machine

Appearance

Dimensions

10m3/H Underground Shotcrete Machine Customization Wet Shotcrete Machine 2

Turning Radius

Turning Radius

Main configuration and technical parameters

Specifications
Total Weight(kg)		4200 kg
Dimension(L×W×H,mm)		3660×1450×1750mm
Actual concrete spraying capacity		10 m3/h
Power mode (dual power)		Driving: Diesel engine (retractable boom) Working: External 380V AC
Total power (engine/motor, kw)		Engine:36.8 kW Motor:18.5kW
Maximum concrete spraying pressure (MPa)		5 MPa
Driving System Parameters
Driving and steering		four-wheel drive, skid steering
Brake system		Driving: closed spring brake, Parking: hydraulic release
Gradeability		22°
Turning radius		3800 mm
Driving speed		4km/h
Min. Ground Clearance(mm)		140 mm
Boom of concrete spraying machine
Structure type		Main arm rotation, spray arm pitch + telescopic
Maximum effective spray range	Upward	5m
	Forward	6m
	Downward	2m
	Width	12m
Boom rotation angle		360°
Boom pitch range		(Upward 39.4° / Downward 30° )
Axial rotation range of nozzle seat		270°
Axial swaying range of nozzle seat		240°
Nozzle swaying angle+movement		8°*360°Rotation
Conveying pipeline(mm)		Steel pipe:75 Hose:63
Conveying pipeline cleaning		Water+Air Washing

Main performance features

1. It adopts a sliding chassis design, wireless remote control wet spraying operation and walking system; it is suitable for small-section mine tunnels and various harsh construction environments.
2. The fully hydraulic telescopic and rotating mechanical arm has strong load-bearing capacity, stable movement, easy operation and no construction blind spots.
3. The spray arm is located at the front of the unit and do not interfere with other arms, it maximizing the flexibility of the robotic booms. Moreover, the rotation angle of the main arm can reach 360 degrees and the spraying is even and without dead spots.
4. Its small size allows it be driven flexibly and operated in mines of different sizes; It has a high integration and is equipped with an accelerator pump.
5. Each wet spraying machine only needs one shotcrete operator and one assistant, which greatly reduces labor costs.
6. The pumping system has strong suction of concrete which ensures longer service life and low risk of pipe blockage.
