Articulated Chassis Underground Scaler Rock Scaler Machine With Scraping Function

MOQ:	1 set
Payment Terms:	LC, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Model NO.:

XMPYT-96/600

Special Function:

Scraping

Transport Package:

Bulk

Specification:

8000x1950x2190

Trademark:

Jarlo

Origin:

China

HS Code:

8430509000

Supply Ability:

1000 Sets/Year

Customization:

Available

After-sales Service:

12 Months

Warranty:

12 Months

Highlight:

Articulated Chassis Underground Scaler

Scraping Function Underground Scaler

Scraping Function Rock Scaler Machine

Product Description

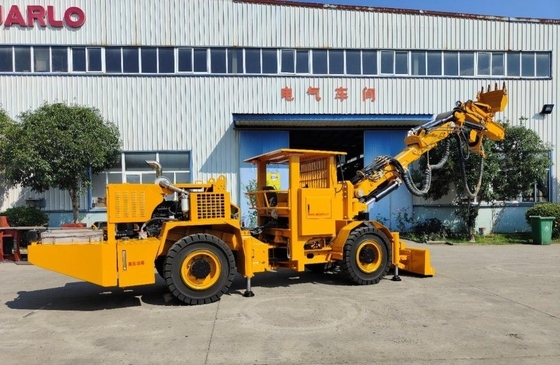

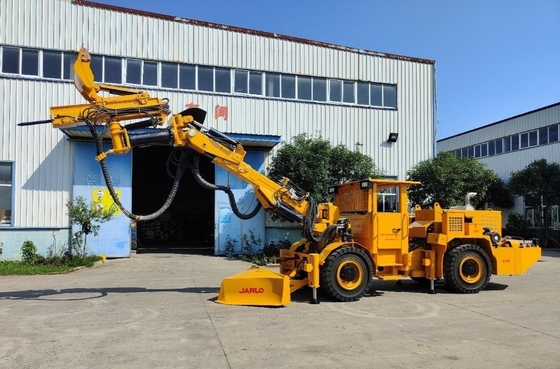

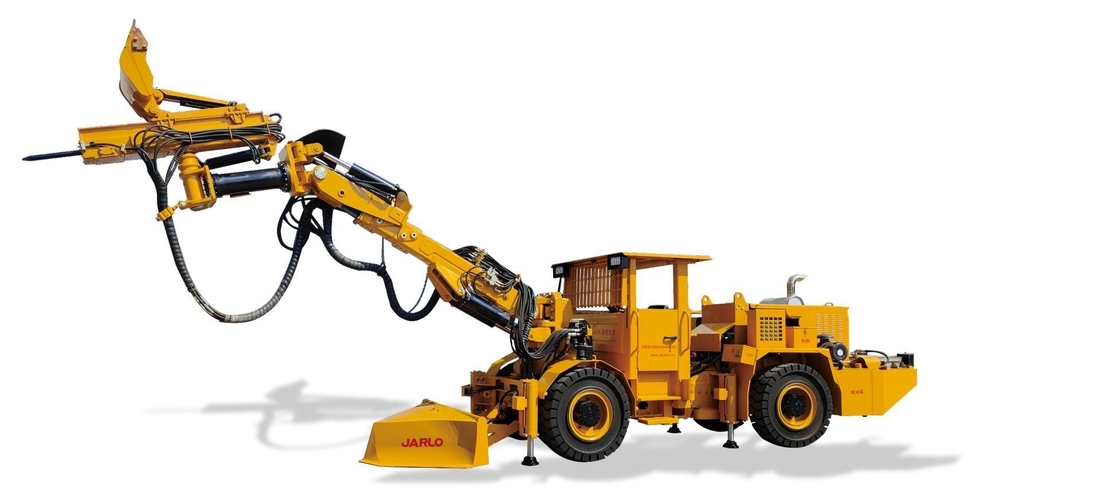

XMPYT-96/600 Scaling and Scraping Rig

Structure and Dimensions

Min. Turning Radius

Max. Scaling Height

Max. Scraping Height

Main configuration

Model				XMPYT-96/600(P)
Item			Unit	Parameters
Unit performance	Dimensions	L	mm	11320(dust reducing optional)
		W	mm	1950
		Min. height	mm	2250
		Max. height	mm	2560
	Min. turning radius		mm	Inner:≤3350 Outer:≤5860
	Min. ground clearance		mm	300
	Max. scaling Height		mm	8010
	Max.raking Height		mm	7000
	Raking stroke		mm	760
	Total weight		kg	13800±200
	Articulated steering angle		(°)	±40
Work Boom	Working pressure		MPa	16
	Rated pressure		MPa	17.5
	Work flow		L/min	≥25
	Boom swaying angle(left & right)		°	±30
	Special function			Raking and scraping
Hydraulic rock breaker	Impact power		J	≥600
	Impact frequency		Hz	10-18.5
	Rod Diameter		mm	53
	Weight		kg	90
	Work flow		L/min	25-45
	Work Pressure		MPa	≤12
Chassis	Drive mode		-	Tyre(Articulated)
	Driving speed	Fast gear	km/h	19.0±2.1
		Slow gear	km/h	8.0±0.9
	Gradeability		(°)	22

Main technical parametersPerformance characteristics

Hydraulic torque converter and gearbox drive engineering chassis, four-wheel drive, large driving torque, high shoveling ability, and strong climbing performance.
The cab adopts mining safety ergonomic design and has passed FOPS and ROPS certification. Centralized control, reasonable layout, comfortable and convenient; the cab can be raised, lowered and tilted to facilitate precise operation.
Hydraulic wet dual braking system, oil brake for driving and closed spring brake for parking which meet the safety usage requirements of mines with long slopes and low tunnels.
The fully hydraulic parallel-moving arm system can keep the movement trajectory of the rake parallel to the direction of the tunnel.
The articulated special chassis has a smaller turning radius and can meet the needs of tunnel operations to the greatest extent.
The breaking hammer adopts industry-leading South Korean imported brand products, with stable performance, flexible reversal, high impact energy, small recoil force and long service life.
The reinforced engineering chassis greatly enhances the rigidity and strength of the vehicle body, making the vehicle heavier and more stable in crushing.
It has two working forms: "scaling" and "raking", which can be quickly switched during the work process. When dealing with large areas of pumice, you can use a rake to quickly scrape. When dealing with stones with greater bonding strength, you can use a breaker hammer to impact.
Equipped with a ballast cleaning shovel, which can quickly and properly clean the blast pile before removing the ballast, so that the scaling rig can be driven to the working site to clean the stones on the roof and side walls. It has better pass-ability and stronger adaptability.
