Hydraulic Tunnel Shotcrete Machine Construction Concrete Shotcrete Machine Rotor Type

MOQ:	1 set
Payment Terms:	LC, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001: 2000

Model NO.:

CSPB20T

Shotcrete Type:

Wet

Machining Process:

Hydraulic

Structure:

Rotor Type

Productivity:

20 Cubic Meters/H

Feeding Height:

1400mm

Vibrating Amplitude:

None

Condition:

New

Color:

Yellow

Transport Package:

Bulk

Specification:

7220x2100x2500mm

Trademark:

Jarlo

Origin:

China

HS Code:

870590000

Supply Ability:

1000 Sets/Year

Customization:

Available

After-sales Service:

12 Months

Warranty:

12 Months

Highlight:

Hydraulic Tunnel Shotcrete Machine

Concrete Shotcrete Machine Rotor Type

Construction Concrete Shotcrete Machine

Product Description

CSPB20T Diesel Wet Concrete Spraying Machine

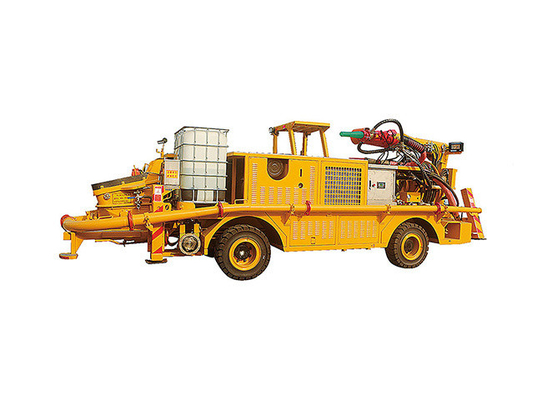

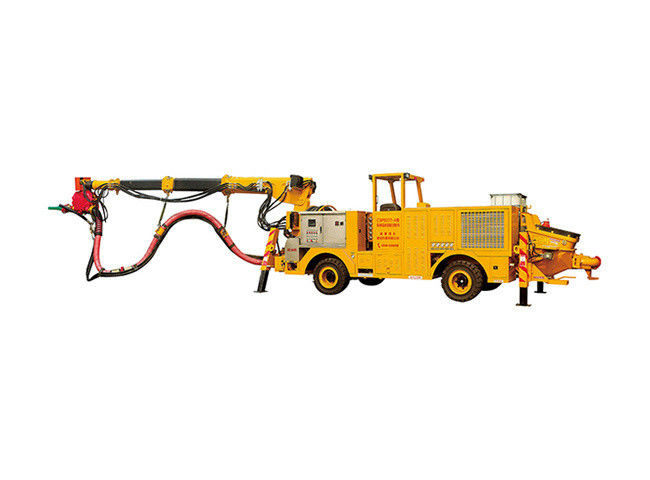

Appearance Hydraulic Tunnel Shotcrete Machine Construction Concrete Shotcrete Machine Rotor Type 0

Dimensions
Hydraulic Tunnel Shotcrete Machine Construction Concrete Shotcrete Machine Rotor Type 1

Turning Radius Hydraulic Tunnel Shotcrete Machine Construction Concrete Shotcrete Machine Rotor Type 3

Spraying Scope

Main configuration and technical parameters

Items			Parameters and configuration	Remark
Parameters			CSPB20T
Total weight(kg)			11300
Dimension(L×W×H,mm)			7220×2100×2500(±50)
Actual concrete spraying capacity(m³/h)			20m³/h
Power mode (dual power)			Driving: Diesel engine (retractable boom, pumping and cleaning equipment) Working: External 380V AC power supply
Total power (engine/motor, kw)			Engine: 88kW Motor: 45kw+45kw (total power 90kw)
Maximum concrete spraying pressure (MPa)			7.5MPa
Parameters
Chassis	Manufacturer		Anhui Jarlo Construction Machinery Co., Ltd.
	Engine	Type	Four-cylinder water-cooled high-pressure common rail
		Rated power(kw/rpm)	88/2400
		Exhaust emission standard	National 4
	Driving and steering		Four-wheel drive, four-wheel steering
	Brake system		Driving: hydraulic wet type Parking: spring brake, hydraulic release
	Gradeability		18°
	Turning radius		2800mm/4800mm
	Driving speed)		Max. 17km/h
	Min. Ground Clearance(mm)		280(mm)
	FOPS & ROPS		Satisfied
Concrete jet pump	Manufacturer		Anhui Jarlo Construction Machinery Co., Ltd.
	Type		Piston pumping system
	Capacity(m³/h)		20m³/h
	Concrete specifications	slump	12~18(cm)
		Max.Aggregate size	25(mm)
	Shotcrete aggregate particle size		Max. 25(mm)
	Concrete delivery valve type		S Pipe valve
	Concrete pumping pressure		7.5(MPa)
	Concrete bore size × stroke		φ160*800(mm)
	Main cylinder diameter		90(mm)
	Hopper volume		0.48(m³)
	Hopper loading height		1.25(m)
	Vibrator		380V
Boom of concrete spraying machine	Manufacturer		Anhui Jarlo
	Structure type		Main arm rotation, spray arm pitch + telescopic
	Maximum effective spray range	Upward	10(m)
		Forward	8(m)
		Downward	3(m)
		Width	16(m)
	Boom rotation angle		360°
	Boom pitch range		(Upward 64° / Downward 40° )
	Axial rotation range of nozzle sea		360t(°)
	Axial swing range of nozzle seat		240(°)
	Boom proportional multi-way valve		Germany Hawe load sensitive proportional multi-way valve
	Nozzle swaying angle+movement		8°*360° Rotation
	Operation		Dual control: 100 meters wireless remote control + 16 meters wired
	Remote control system		JARLO
	Boom balance valve		Italian
	Conveying pipeline(mm)		Steel pipe: 80 Hoses: 76
	Conveying pipeline cleaning		Water washing + air washing
Hydraulic system	Main oil pump	Type and manufacturer	Electric proportional piston pump, PUSH(electric motor 30 kw)
		Rated pressure	28(MPa)
		Flow	110(L/min)
		Main pump valve	Taiwan
		Swing cylinder valve	Taiwan
	Auxiliary oil pump	Type and manufacturer	Piston pump
		Rated pressure	28(MPa)
		Flow	42(L/min)
Air compressor	Nominal volume flow		10(m³/min)
	Motor nominal power		45(kw)
	Exhaust pressure(Mpa)		Rated pressure 0.55MPa
Accelerator automatic batching system	Manufacturer		JARLO
	Type		Hose pump
	Flow		0~800(L/h)
	Delivery pressure		10(bar)
	Accelerator flow valve		American
	Accelerator tank volume		500(L)
High pressure cleaning water pump	Manufacturer		Black cat1812
	Max. output water pressure		15(MPa)
	Output flow		15(L/min)
Electrical System	Motor protection level		IP55
	Safety protection		Leakage protection, safety grounding
	Controller form and manufacturer		Special controller, Germany
	Motor brand		Wannan motor
	Low voltage control electrical appliance brand		Schneider
Cable	Cable drum drive method		Hydraulic drive
	Cable specifications		350+116
	Cable length		100m(m)
	External power requirements		Alternating current 380V,200KVA
Other configurations	working lamp		LED
	Hydraulic legs		Available
	DOC+CDPF		Available
	Automatic fire extinguishing device		Available	Optional
